John Deere

750C LGP

Crawler Dozer

Operating Weight
36,576 lb
Max Speed - Forward
6.8 mph
Gross Power
148.0 hp
Net Power
140.0 hp
All crawler dozers

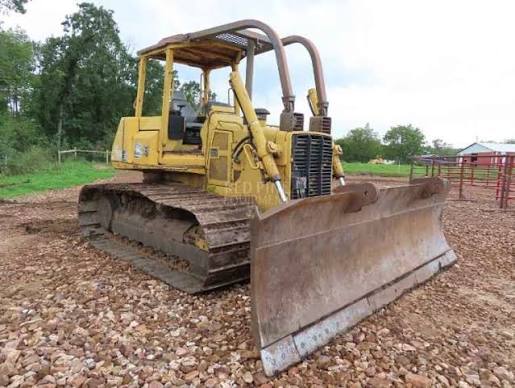

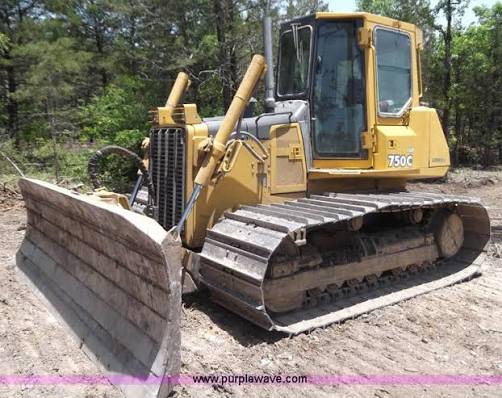

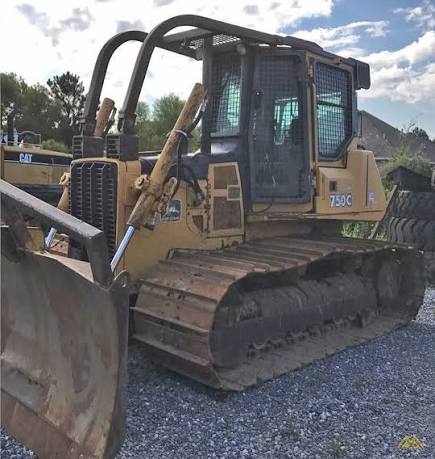

John Deere 750C LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: forestryequipmentsales.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight36,576 lb
Fuel Capacity74.0 gal
Cooling System Fluid Capacity7.0 gal
Final Drives Fluid Capacity7.4 gal
Engine Oil Capacity5.1 gal
Hydraulic Fluid Capacity18.0 gal
Operating Voltage24 V
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model6068T
Displacement414 in³
Power Measured @2,100 rpm
Gross Power148.0 hp
Net Power140.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque420 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.0 gal/min
Relief Valve Pressure2,000 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab121 in
Length of Track on Ground110 in
Width Over Tracks117 in
Length w/ Blade194 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse6.8 mph
Transmission TypeHydrostatic drive

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge83 in
Number of Track Rollers per Side7
Number of Shoes per Side42
Standard Shoe Size34 in
Ground Contact Area7,446 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width152 in
Height45 in
Capacity4.90 yd³
Blade Angle (both directions)24 °
