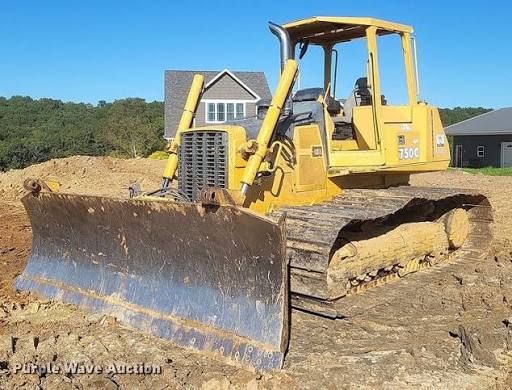

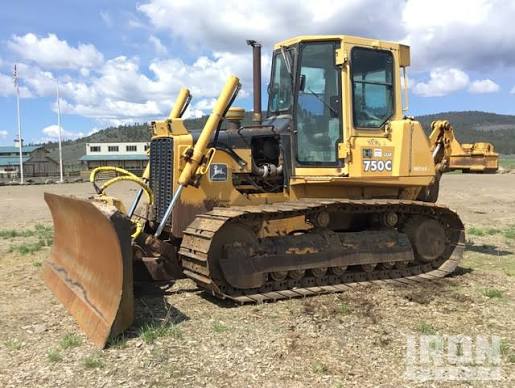

John Deere
750C WT
- Operating Weight
- 33,324 lb
- Max Speed - Forward
- 6.8 mph
- Gross Power
- 148.0 hp
- Net Power
- 140.0 hp
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 33,324 lb |
|---|---|
| Fuel Capacity | 74.0 gal |
| Cooling System Fluid Capacity | 7.0 gal |
| Final Drives Fluid Capacity | 6.3 gal |
| Engine Oil Capacity | 5.1 gal |
| Hydraulic Fluid Capacity | 18.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 148.0 hp |
| Net Power | 140.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Altitude-compensating turbocharger |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 420 lb-ft |
Hydraulic System
| Pump Flow Capacity | 38.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,000 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 103 in |
| Width Over Tracks | 96 in |
| Length w/ Blade | 196 in |
Transmission
| Max Speed - Forward | 6.8 mph |
|---|---|
| Max Speed - Reverse | 6.8 mph |
| Transmission Type | Hydrostatic |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 74 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 40 |
| Standard Shoe Size | 34 in |
| Ground Contact Area | 6,936 in³ |
| Track Pitch | 8 in |
Standard Blade
| Width | 133 in |
|---|---|
| Height | 38 in |
| Capacity | 3.30 yd³ |
