John Deere

750J LT

Crawler Dozer

Operating Weight
34,390 lb
Max Speed - Forward
6.3 mph
Gross Power
157.0 hp
Net Power
145.0 hp
All crawler dozers

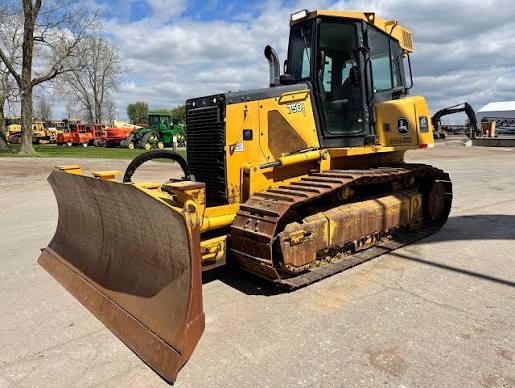

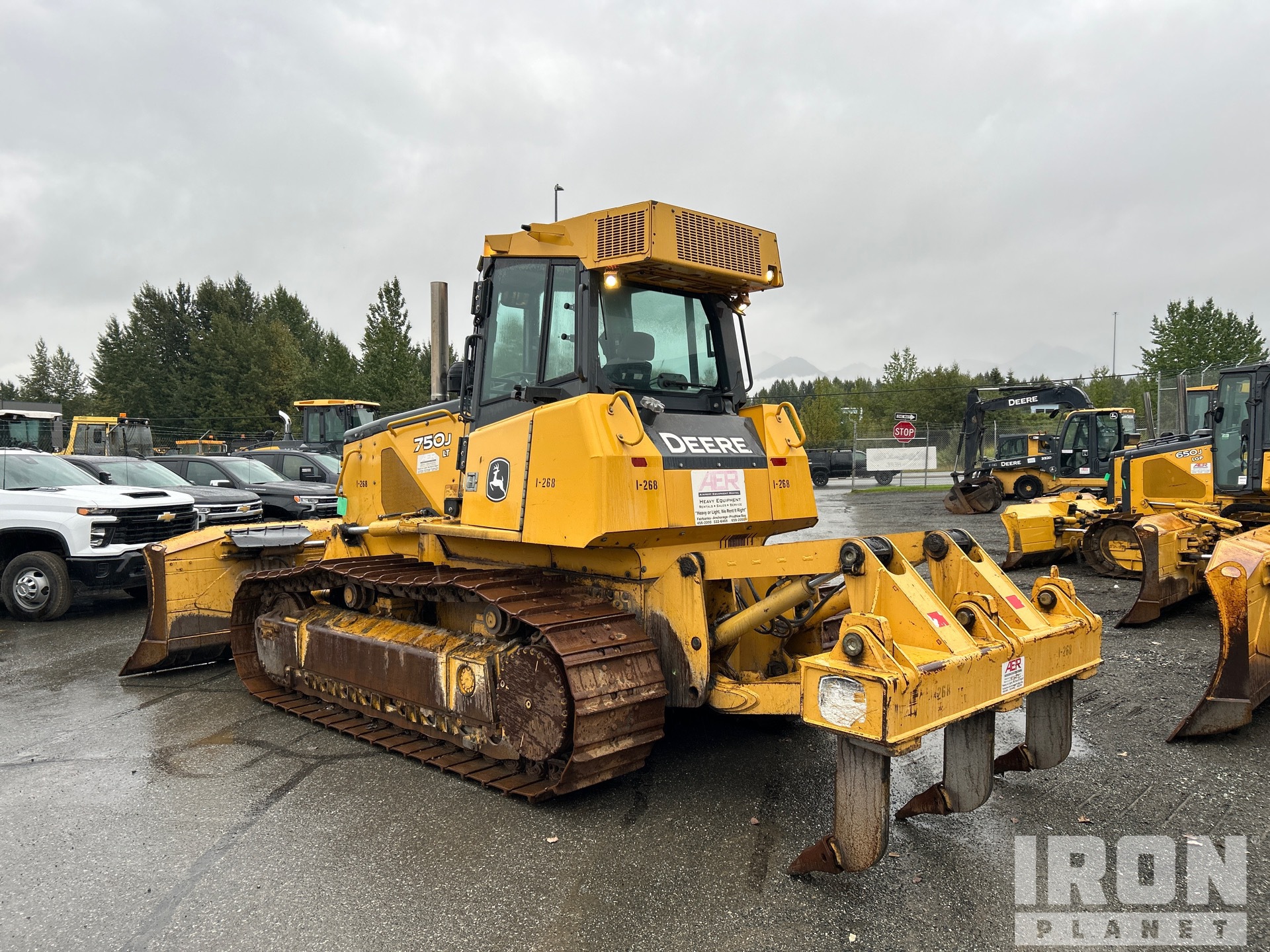

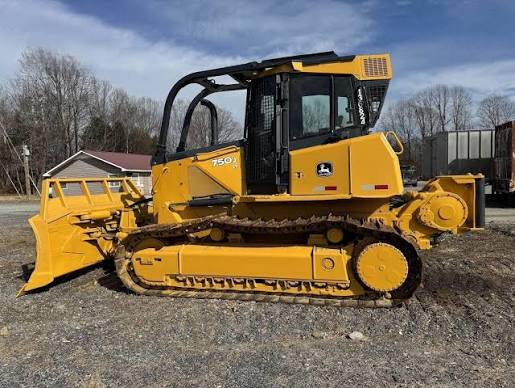

John Deere 750J LT Crawler Dozer
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,390 lb
Fuel Capacity98.0 gal
Cooling System Fluid Capacity5.7 gal
Final Drives Fluid Capacity4.0 gal
Engine Oil Capacity7.0 gal
Hydraulic Fluid Capacity27.9 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,100 rpm
Gross Power157.0 hp
Net Power145.0 hp
Number of Cylinders6
AspirationTurbocharged w/ after-cooler
Torque Measured @1,400 rpm
Max Torque500 lb-ft
MakeDeere

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.0 gal/min
Relief Valve Pressure3,625 psi
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab122 in
Length of Track on Ground121 in
Width Over Tracks96 in
Length w/ Blade209 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse6.3 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge74 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Standard Shoe Size22 in
Ground Contact Area5,324 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width131 in
Height47 in
Capacity4.30 yd³
Blade Angle (both directions)24 °
