John Deere

750J WT

Crawler Dozer

Operating Weight
36,425 lb
Max Speed - Forward
6.3 mph
Gross Power
157.0 hp
Net Power
145.0 hp
All crawler dozers

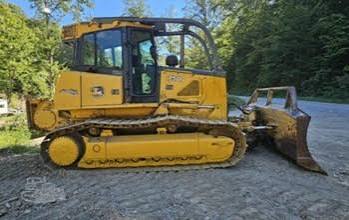

John Deere 750J WT Crawler Dozer
1 / 5
Image 1 of 5
Image: deere.asia

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight36,425 lb
Fuel Capacity98.0 gal
Cooling System Fluid Capacity5.7 gal
Final Drives Fluid Capacity4.0 gal
Engine Oil Capacity7.0 gal
Hydraulic Fluid Capacity28.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,100 rpm
Gross Power157.0 hp
Net Power145.0 hp
AspirationTurbocharged w/ aftercooler
Torque Measured @1,400 rpm
Max Torque500 lb-ft
MakeDeere

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.0 gal/min
Relief Valve Pressure3,625 psi
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab122 in
Length of Track on Ground103 in
Width Over Tracks119 in
Length w/ Blade205 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse6.3 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge84 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Standard Shoe Size34 in
Ground Contact Area6,936 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width149 in
Height46 in
Capacity5.90 yd³
