John Deere

753J

Feller Buncher

Operating Weight w/o Attachment
50,480 lb
Max Speed
2.4 mph
Displacement
492 in³
Gross Power
241.0 hp
All feller bunchers

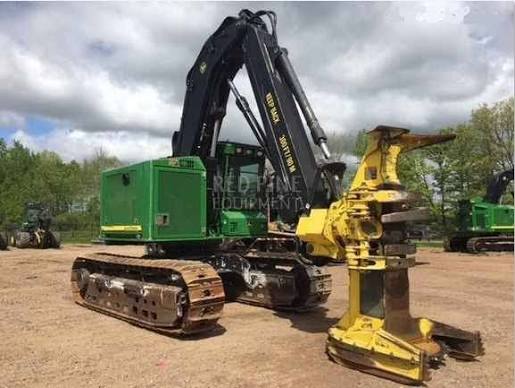

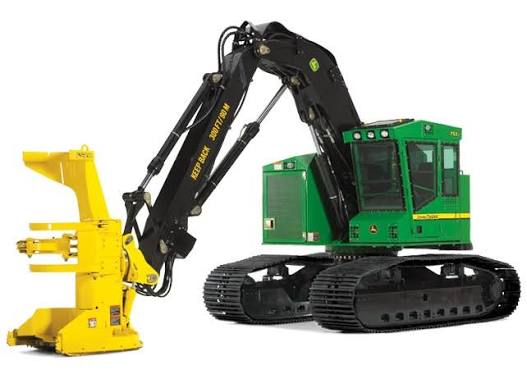

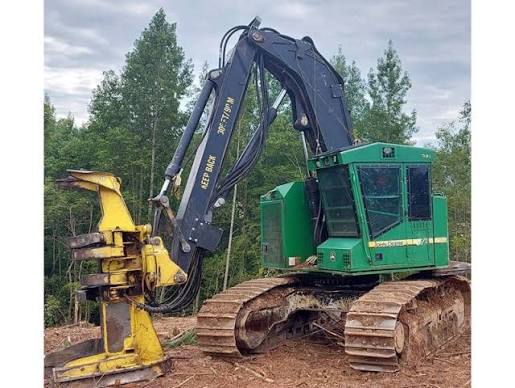

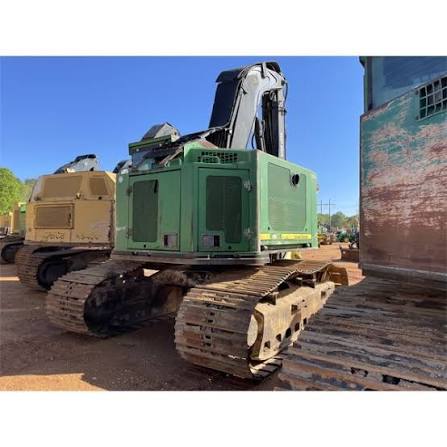

John Deere 753J Feller Buncher
1 / 5
Image 1 of 5
Image: rdoequipment.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment50,480 lb
Max Speed2.4 mph
Fuel Capacity154.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Hydraulic System Fluid Capacity36.0 gal
Cooling System Fluid Capacity10.2 gal
Engine Oil Capacity7.4 gal
Ground Pressure7 psi

Engine

Engine specifications
Engine Model6081H
Displacement492 in³
Gross Power241.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
Net Torque907 lb-ft

Dimensions

Dimensions specifications
Ground Clearance3 in
Height - Top of Cab137 in
Overall Width126 in
Length of Track on Ground141 in
Tail Swing Radius77 in
Max Reach331 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Tractive Effort57,400 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach10,400 lb
Max Cut Radius330 in
Min Cut Radius126 in
