Tigercat

822C

Feller Buncher

Operating Weight w/o Attachment
54,000 lb
Gross Power
300.0 hp
All feller bunchers

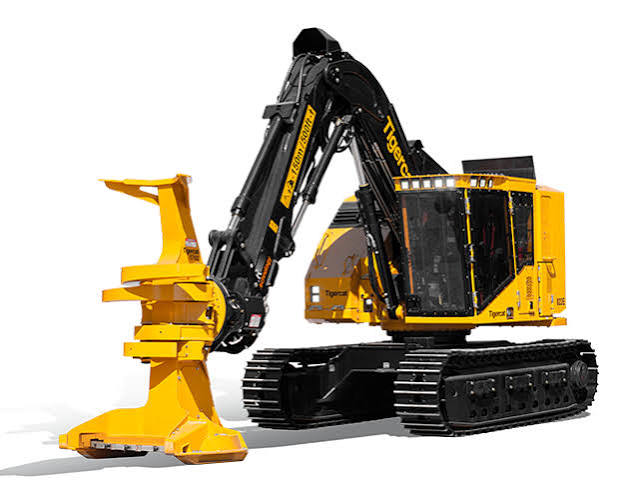

Tigercat 822C Feller Buncher
1 / 5
Image 1 of 5
Image: forestrytrader.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment54,000 lb
Fuel Capacity129.5 gal
Operating Voltage24 V
Alternator Supplied Amperage110 A
Hydraulic System Fluid Capacity43.6 gal

Engine

Engine specifications
Engine ModelQSL9
Power Measured @1,800 rpm
Gross Power300.0 hp

Dimensions

Dimensions specifications
Ground Clearance3 in
Height - Top of Cab132 in
Overall Length175 in
Overall Width132 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Tractive Effort56,000 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach8,874 lb
Max Cut Radius330 in
Min Cut Radius128 in

Comparable machines

Other feller bunchers in a similar weight class.
