John Deere

759J

Feller Buncher

Operating Weight w/o Attachment
60,060 lb
Max Speed
2.4 mph
Displacement
492 in³
Gross Power
241.0 hp
All feller bunchers

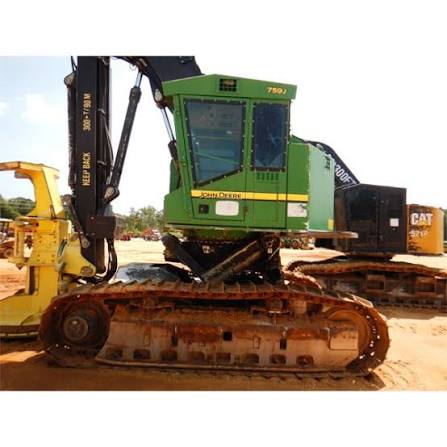

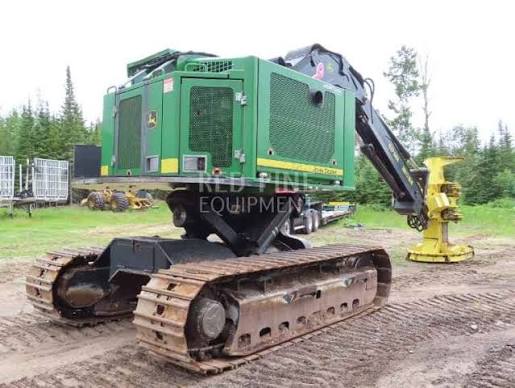

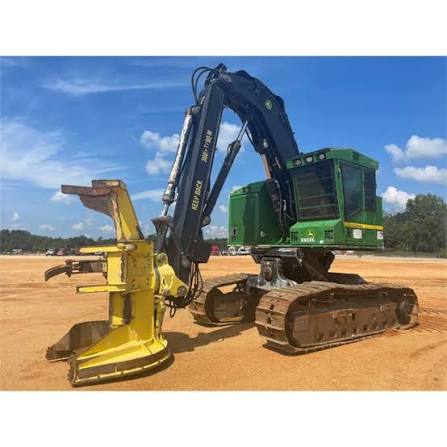

John Deere 759J Feller Buncher
1 / 5
Image 1 of 5
Image: rdoequipment.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment60,060 lb
Max Speed2.4 mph
Fuel Capacity154.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Hydraulic System Fluid Capacity36.0 gal
Cooling System Fluid Capacity10.2 gal
Engine Oil Capacity7.4 gal
Ground Pressure9 psi

Engine

Engine specifications
Engine Model6081H
Displacement492 in³
Gross Power241.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
Net Torque907 lb-ft

Dimensions

Dimensions specifications
Ground Clearance2 in
Height - Top of Cab155 in
Overall Width120 in
Length of Track on Ground141 in
Tail Swing Radius77 in
Max Reach328 in

Undercarriage

Undercarriage specifications
Track Gauge96 in
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Tractive Effort57,400 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach10,406 lb
Max Cut Radius328 in
Min Cut Radius139 in

Upperstructure Leveling

Upperstructure Leveling specifications
Front27 °
Side18 °
Rear10 °
