Tigercat

LX822C

Feller Buncher

Operating Weight w/o Attachment
72,003 lb
Gross Power
300.0 hp
All feller bunchers

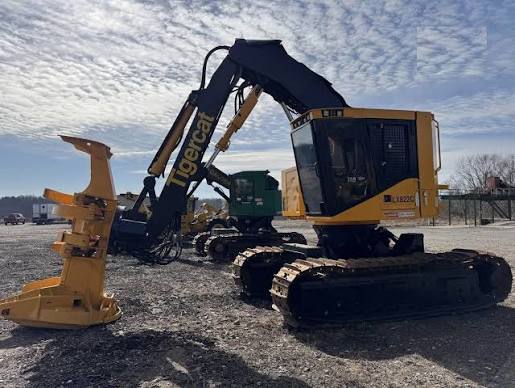

Tigercat LX822C Feller Buncher
1 / 5
Image 1 of 5
Image: forestrytrader.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment72,003 lb
Fuel Capacity129.5 gal
Operating Voltage24 V
Alternator Supplied Amperage110 A
Hydraulic System Fluid Capacity43.6 gal

Engine

Engine specifications
Engine ModelQSL9
Power Measured @1,800 rpm
Gross Power300.0 hp

Dimensions

Dimensions specifications
Ground Clearance3 in
Height - Top of Cab148 in
Overall Length187 in
Overall Width130 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Shoe Size28 in
Track Pitch8 in
Tractive Effort66,000 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach10,100 lb
Max Cut Radius330 in
Min Cut Radius128 in

Upperstructure Leveling

Upperstructure Leveling specifications
Front26 °
Side20 °
Rear6 °
