John Deere

759G

Processor

Operating Weight
57,519 lb
Gross Power
241.4 hp
All processors/harvesters

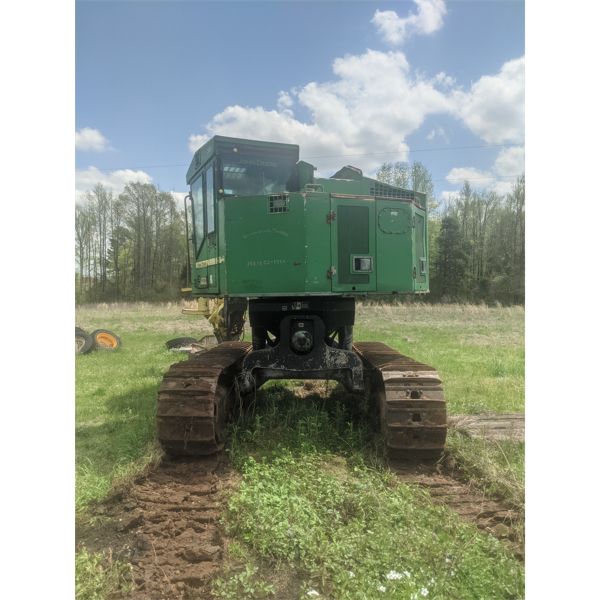

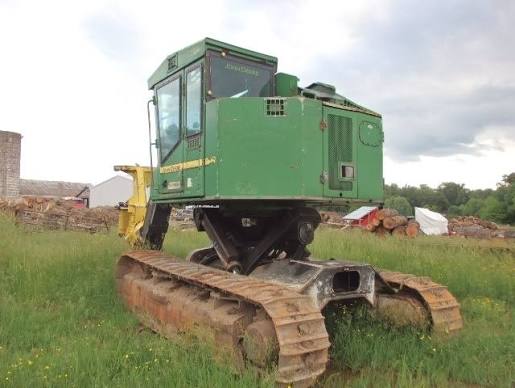

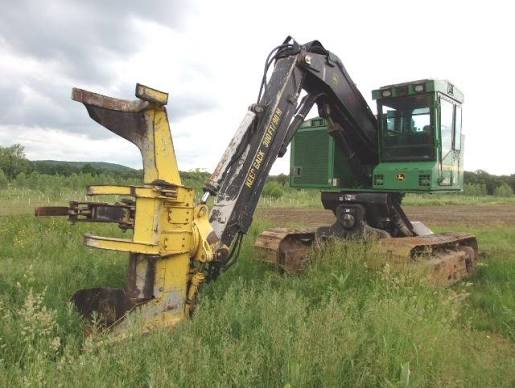

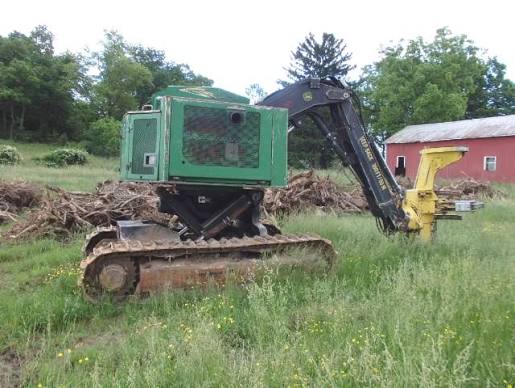

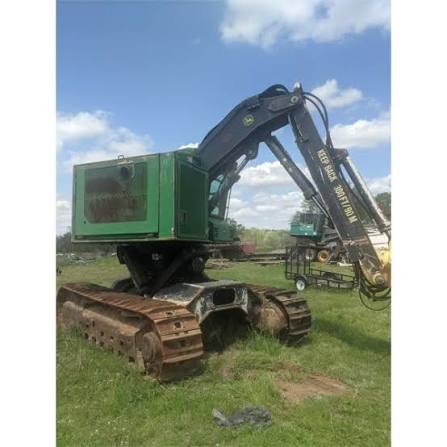

John Deere 759G Processor
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,519 lb
Max Speed2.5 mph
Fuel Capacity154.3 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Hydraulic System Fluid Capacity52.1 gal
Cooling System Fluid Capacity10.2 gal
Engine Oil Capacity7.4 gal

Engine

Engine specifications
Engine Model6081H
Displacement494 in³
Power Measured @2,000 rpm
Gross Power241.4 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
Max Torque907 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab150 in
Overall Width121 in
Forward Tilt27 °
Side Tilt20 °

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge96 in
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Ground Clearance30 in
Track Length175 in

Boom

Boom specifications
Max Reach w/ Head374 in
