John Deere

75C

Mini Excavator

Operating Weight
17,714 lb
Max Digging Depth
162 in
Gross Power
54.0 hp
Net Power
54.0 hp
All mini excavators

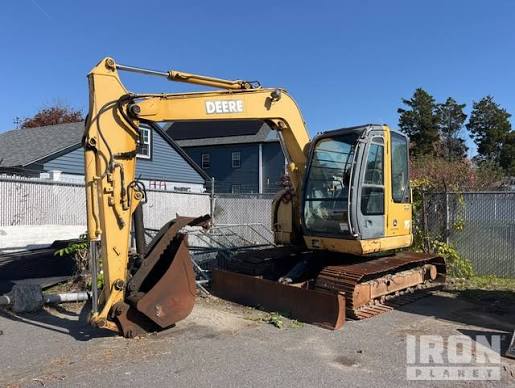

John Deere 75C Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

75 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,714 lb
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine ModelCC-4JG1
Displacement187 in³
Power Measured @2,100 rpm
Gross Power54.0 hp
Net Power54.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,700 rpm
Max Torque142 lb-ft
Net Torque142 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab107 in
Overall Width8 in
Tail Swing Radius48 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in
Upper Structure Clearance48 in
Overall Width - Outriggers Down74 in

Transmission

Transmission specifications
Transmission TypeNaturally aspirated direct injection diesel
Max Travel Speed3.1 mph
Number of Forward Gears1
Number of Reverse Gears1
Drawbar Pull12,350 lb

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge74 in
Number of Track Rollers per Side5
Max Travel Speed3.1 mph
Shoe Size24 in
Number of Shoes per Side40
Number of Carrier Rollers per Side1
Drawbar Pull12,350 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth162 in
Max Reach Along Ground247 in
Max Vertical Wall Digging Depth145 in
Max Loading Height202 in
Shipping Length of Unit231 in
Max Cutting Height284 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
Swing Torque10,200 lb-ft

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth182 in
Max Cutting Height300 in
Max Loading Height217 in
Max Vertical Wall Digging Depth167 in
Max Reach Along Ground267 in
Shipping Height of Unit111 in
Shipping Length of Unit235 in

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth181 in
Max Cutting Height300 in
Max Loading Height217 in
Max Reach Along Ground267 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit234 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth181 in
Max Cutting Height300 in
Max Loading Height217 in
Max Reach Along Ground267 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit234 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth181 in
Max Cutting Height300 in
Max Loading Height217 in
Max Reach Along Ground267 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit234 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth181 in
Max Cutting Height300 in
Max Loading Height217 in
Max Reach Along Ground267 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit234 in
