Volvo

EC50

Mini Excavator

Operating Weight
10,655 lb
Max Digging Depth
146 in
Net Power
45.2 hp
All mini excavators

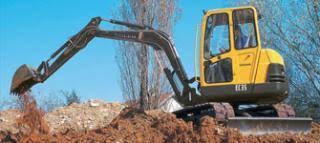

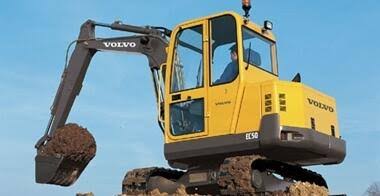

Volvo EC50 Mini Excavator
1 / 5
Image 1 of 5
Image: europe-construction-equipment.com

Specifications

55 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,655 lb
Fuel Capacity21.2 gal
Hydraulic Pump Flow Capacity27.1 gal/min
Hydraulic System Fluid Capacity18.5 gal
Hydraulic System Relief Valve Pressure3,626 psi
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Capacity2.2 gal
Cooling System Fluid Capacity2.2 gal

Engine

Engine specifications
Displacement135 in³
Power Measured @2,500 rpm
Net Power45.2 hp
Number of Cylinders4
Torque Measured @2,050 rpm
Max Torque103 lb-ft

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab100 in
Tail Swing Radius62 in
Width to Outside of Tracks73 in
Removal Counterweight Clearance28 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge57 in
Number of Track Rollers per Side4
Max Travel Speed3.2 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth146 in
Max Reach Along Ground221 in
Max Vertical Wall Digging Depth115 in
Max Loading Height142 in
Shipping Length of Unit204 in
Max Cutting Height199 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth162 in
Max Cutting Height207 in
Max Loading Height150 in
Max Vertical Wall Digging Depth131 in
Max Reach Along Ground236 in
Shipping Height of Unit100 in
Shipping Length of Unit204 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth138 in
Max Cutting Height245 in
Max Loading Height178 in
Max Reach Along Ground238 in
Max Vertical Wall Digging Depth121 in
Shipping Length of Unit219 in
Shipping Height of Unit100 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth154 in
Max Cutting Height258 in
Max Loading Height191 in
Max Reach Along Ground253 in
Max Vertical Wall Dig Depth135 in
