135 Spin Ace
Excavator
46 specifications
1 / 5

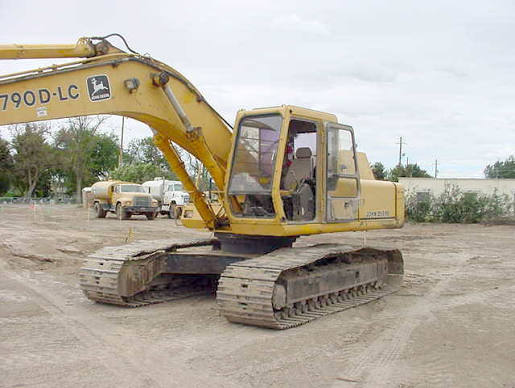

Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 48,440 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 126.8 gal/min |
| Hydraulic System Fluid Capacity | 79.3 gal |
| Hydraulic System Relief Valve Pressure | 3,770 psi |
| Engine Oil Capacity | 24.3 gal |
| Cooling System Fluid Capacity | 42.3 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 12.7 gal |
| Alternator Supplied Amperage | 42 A |
Engine
| Engine Model | e 400 Series |
|---|---|
| Displacement | 466 in³ |
| Net Power | 155.0 hp |
| Aspiration | Turbocharged with aftercooler |
| Max Torque | 515 lb-ft |
Dimensions
| Width to Outside of Tracks | 126 in |
|---|
Boom/Stick Excavator Option 1
| Shipping Length of Unit | 395 in |
|---|---|
| Shipping Height of Unit | 118 in |
