314D LCR
Excavator
46 specifications
1 / 5

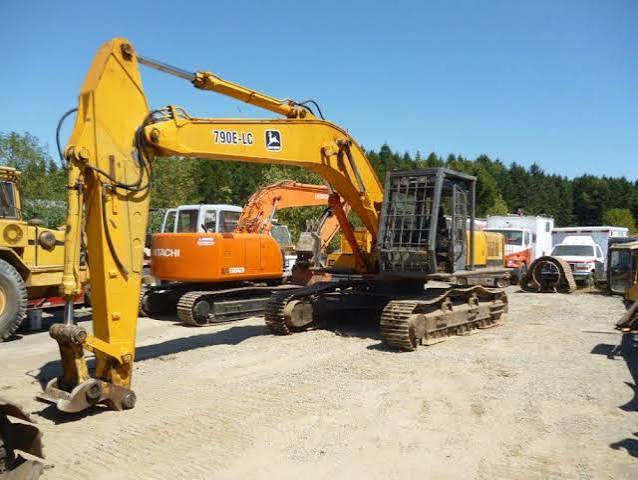

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 51,550 lb |
|---|---|
| Fuel Capacity | 82.0 gal |
| Hydraulic Pump Flow Capacity | 100.0 gal/min |
| Hydraulic System Fluid Capacity | 68.7 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 5.0 gal |
| Cooling System Fluid Capacity | 5.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 6.0 gal |
| Alternator Supplied Amperage | 42 A |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 161.0 hp |
| Net Power | 155.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 465 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 133 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 39,700 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 545 in |
|---|---|
| Max Reach Along Ground | 714 in |
| Max Loading Height | 534 in |
| Max Cutting Height | 622 in |
| Shipping Length of Unit | 540 in |
| Shipping Height of Unit | 128 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
