John Deere
Mccormick
MTX185
Tractor
19 specifications
1 / 5

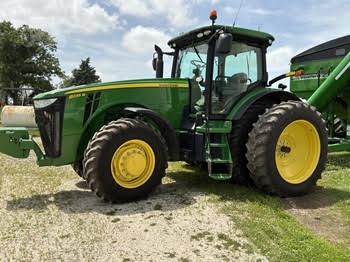

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 27,218 lb |
|---|---|
| Fuel Capacity | 183.6 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 24,750 lb |
| 3 Point Hitch Type | 3/3N |
| Cooling System Fluid Capacity | 10.9 gal |
| Engine Oil Capacity | 6.6 gal |
Engine
| Engine Model | PowerTech PSX |
|---|---|
| Gross Power | 259.0 hp |
| Net Power | 235.0 hp |
| Number of Cylinders | 6 |
| PTO Power | 235.2 hp |
Hydraulic System
| Pump Flow Capacity | 35.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,900 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 96 in |
| Wheelbase | 127 in |
| Overall Length | 20 in |
| Tire Size | 420/90R30/480/80R46 |
Transmission
| Number of Forward Gears | 16 |
|---|---|
| Transmission Type | full power shift |
| Number of Reverse Gears | 4 |
Years of Manufacture
| Approximate First Year of Manufacture | 2,011 |
|---|---|
| Approximate Last Year of Manufacture | 2,013 |
