Mccormick

MTX185

Tractor

Operating Weight
16,557 lb
Displacement
412 in³
Power Measured @
2,200 rpm
Gross Power
179.7 hp
All tractors

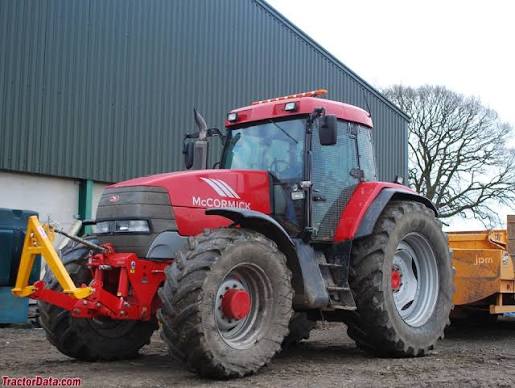

Mccormick MTX185 Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,557 lb
Fuel Capacity91.7 gal
3 Point Hitch Lift Capacity @ 24 inches18,358 lb
3 Point Hitch TypeCat III
Turning Radius214 in
Alternator Supplied Amperage120 A

Engine

Engine specifications
Displacement412 in³
Power Measured @2,200 rpm
Gross Power179.7 hp
Number of Cylinders6
Aspirationturbocharged intercooler
Torque Rise37.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity41.0 gal/min

Dimensions

Dimensions specifications
Wheelbase114 in
Overall Length17 in
Tire Sizefront 540/65R30 rear 650/65R42
Width Outside Frame91 in

Transmission

Transmission specifications
Number of Forward Gears16
Number of Reverse Gears12
