John Deere

850D LC

Excavator

Operating Weight
185,874 lb
Max Digging Depth
349 in
Max Digging Depth
378 in
Net Power
532.0 hp
All excavators

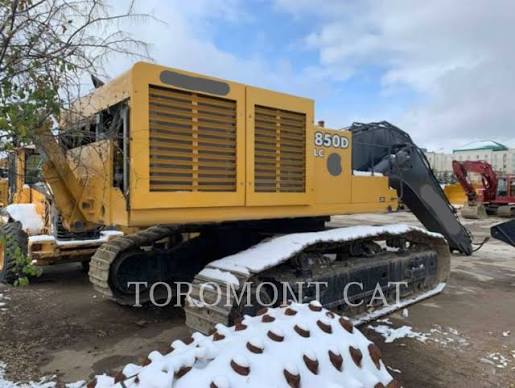

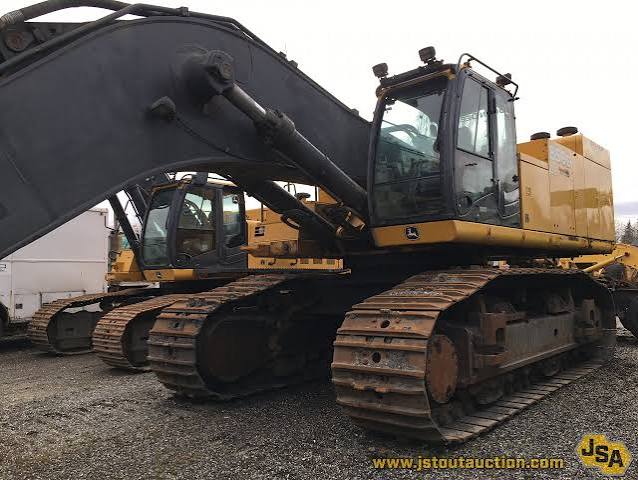

John Deere 850D LC Excavator
1 / 5
Image 1 of 5
Image: viequipmentltd.com

Specifications

69 data points

Operating Specifications

Operating Specifications specifications
Operating Weight185,874 lb
Fuel Capacity296.0 gal
Hydraulic Pump Flow Capacity139.0 gal/min
Hydraulic System Fluid Capacity208.7 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity13.9 gal
Cooling System Fluid Capacity21.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.3 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-03
Displacement957 in³
Power Measured @1,800 rpm
Net Power532.0 hp
AspirationTurbocharged w/ cooler

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab144 in
Length of Track on Ground202 in
Tail Swing Radius179 in
Width to Outside of Tracks172 in
Removal Counterweight Clearance66 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge137 in
Number of Track Rollers per Side9
Max Travel Speed2.5 mph
Shoe Size36 in
Number of Shoes per Side51
Number of Carrier Rollers per Side3
Drawbar Pull126,193 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth349 in
Max Reach Along Ground545 in
Max Loading Height357 in
Max Vertical Wall Digging Depth282 in
Max Cutting Height514 in
Shipping Length of Unit582 in
Shipping Height of Unit180 in

Bucket

Bucket specifications
Reference Bucket Capacity4.60 yd³
Maximum Bucket Capacity6.50 yd³
Minimum Bucket Capacity2.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth378 in
Max Vertical Wall Digging Depth335 in
Max Cutting Height545 in
Max Loading Height384 in
Max Reach Along Ground576 in
Shipping Length of Unit584 in
Shipping Height of Unit190 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth417 in
Max Cutting Height572 in
Max Loading Height410 in
Max Vertical Wall Digging Depth384 in
Max Reach Along Ground618 in
Shipping Length of Unit576 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth282 in
Max Cutting Height474 in
Max Reach Along Ground474 in
Max Loading Height320 in
Max Vertical Wall Dig Depth162 in
Shipping Length of Unit533 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth441 in
Max Reach Along Ground643 in
Max Cutting Height577 in
Max Loading Height426 in
Max Vertical Wall Dig Depth389 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth479 in
Max Reach Along Ground683 in
Max Cutting Height605 in
Max Loading Height444 in
Max Vertical Wall Dig Depth448 in
