Doosan

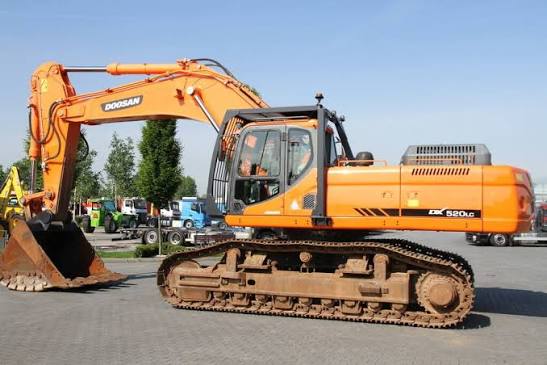

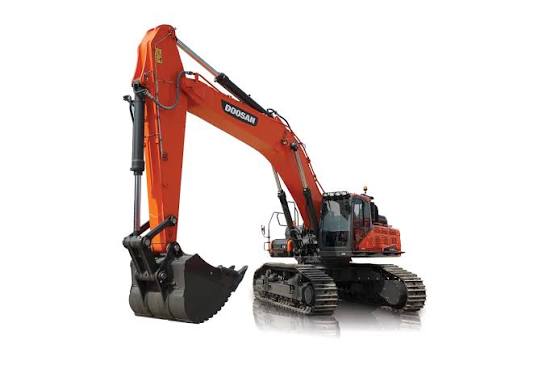

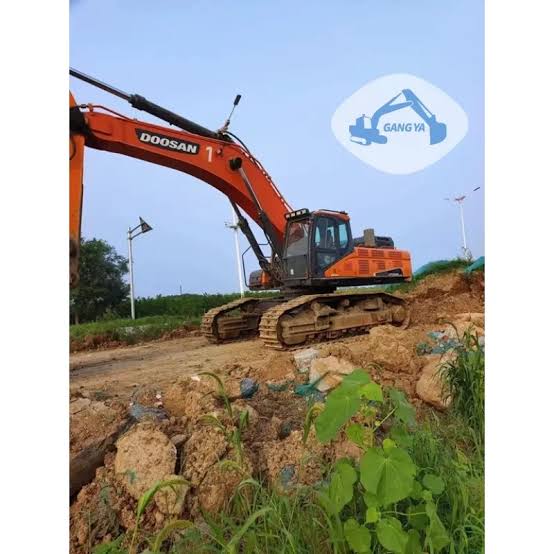

DX520LC
- Operating Weight
- 111,774 lb
- Max Digging Depth
- 466 in
- Max Digging Depth
- 268 in
- Net Power
- 328.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 111,774 lb |
|---|---|
| Fuel Capacity | 163.8 gal |
| Hydraulic Pump Flow Capacity | 187.6 gal/min |
| Hydraulic System Fluid Capacity | 132.1 gal |
| Hydraulic System Relief Valve Pressure | 4,550 psi |
| Engine Oil Capacity | 11.7 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.1 gal |
Engine
| Engine Model | DV11 |
|---|---|
| Displacement | 669 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 328.0 hp |
| Aspiration | turbocharged air to air intercooled |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 1,136 lb-ft |
Dimensions
| Ground Clearance | 31 in |
|---|---|
| Height - Top of Cab | 132 in |
| Length of Track on Ground | 176 in |
| Tail Swing Radius | 146 in |
| Width to Outside of Tracks | 154 in |
| Removal Counterweight Clearance | 57 in |
Undercarriage
| Ground Pressure | 13 psi |
|---|---|
| Track Gauge | 108 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 53 |
| Number of Carrier Rollers per Side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 466 in |
|---|---|
| Max Reach Along Ground | 625 in |
| Max Loading Height | 388 in |
| Max Vertical Wall Digging Depth | 407 in |
| Max Cutting Height | 504 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.81 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 268 in |
|---|---|
| Max Vertical Wall Digging Depth | 48 in |
| Max Cutting Height | 378 in |
| Max Loading Height | 265 in |
| Max Reach Along Ground | 413 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 596 in |
|---|---|
| Max Cutting Height | 572 in |
| Max Loading Height | 472 in |
| Max Vertical Wall Digging Depth | 506 in |
| Max Reach Along Ground | 767 in |
