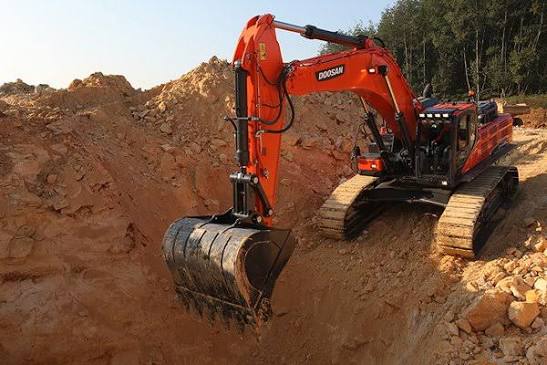

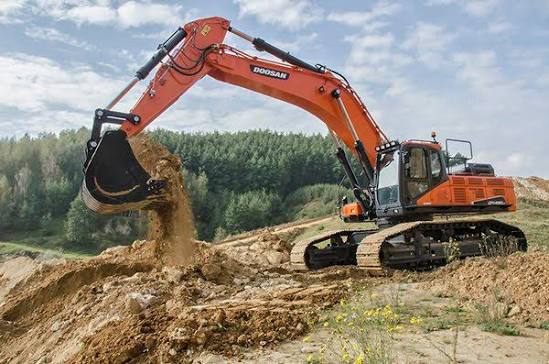

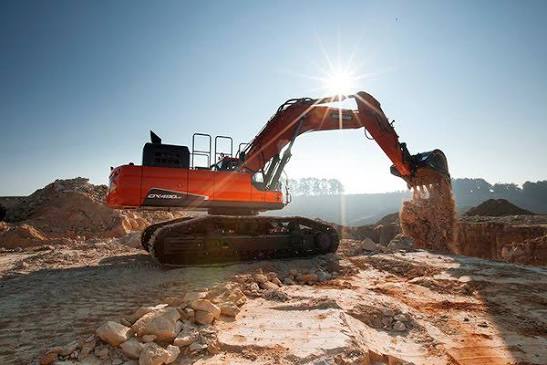

Doosan
DX490LC-5
- Operating Weight
- 112,206 lb
- Max Digging Depth
- 288 in
- Max Digging Depth
- 313 in
- Net Power
- 373.0 hp
1 / 5
Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 112,206 lb |
|---|---|
| Fuel Capacity | 181.0 gal |
| Hydraulic System Fluid Capacity | 132.1 gal |
| Hydraulic System Relief Valve Pressure | 8 psi |
| Engine Oil Capacity | 11.9 gal |
| Cooling System Fluid Capacity | 13.5 gal |
| Swing Drive Fluid Capacity | 1.4 gal |
| DEF tank capacity | 18.5 gal |
| Hydraulic Tank | 103.1 gal |
Engine
| Engine Model | Dc13 |
|---|---|
| Displacement | 775 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 380.0 hp |
| Net Power | 373.0 hp |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 369 lb-ft |
| Engine Make | Scania |
| Bore | 5 in |
| Stroke | 6 in |
| Air cleaner | Double Elements |
| Starter | 8.0 hp |
Weights
| Counterweight | 20,283 lb |
|---|
Hydraulic System
| Pilotpump-Gear Design | 6.3 gal/min |
|---|---|
| Relief Pressure - Boost | 4,978 psi |
| Relief Pressure -Normal | 4,694 psi |
Dimensions
| Height - Top of Cab | 132 in |
|---|---|
| Length of Track on Ground | 215 in |
| Tail Swing Radius | 150 in |
| Counterweight Clearance | 57 in |
| Undercarriage Width | 150 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 131 in |
| Shoe Size | 36 in |
| Number of Shoes per Side | 53 |
| Number of bottom rollers per side | 9 |
| Number of top rollers per side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 288 in |
|---|---|
| Max Reach Along Ground | 467 in |
| Max Loading Height | 287 in |
| Max Vertical Wall Digging Depth | 241 in |
| Shipping Length of Unit | 482 in |
| Shipping Height of Unit | 142 in |
| Minimum swing radius | 205 in |
| Min Digging Reach | 33 in |
Bucket
| Minimum Bucket Capacity | 2.80 yd³ |
|---|
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 313 in |
|---|---|
| Max Vertical Wall Digging Depth | 179 in |
| Max Loading Height | 305 in |
| Shipping Length of Unit | 483 in |
| Shipping Height of Unit | 135 in |
| Minimum swing radius | 205 in |
| Min Digging Reach | 42 in |
Electrical System
| Alternator | — |
|---|---|
| Battery | 12 V 200 AH 1300 |
| Starter | 24 V |
Performance
| Maximum Grade | 70.0 % |
|---|---|
| Swing - Normal Mode | 4,694 psi |
| Swing-Power Mode | 4,978 psi |
| Traction Force -Draw bar Pull | 100,530 lb-ft |
| Travel-Normal Mode | 4,694 psi |
| Travel-Power Mode | 4,978 psi |
