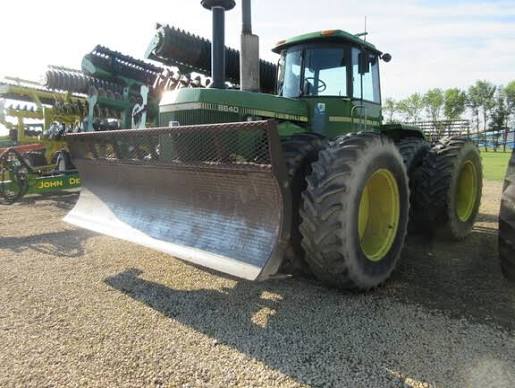

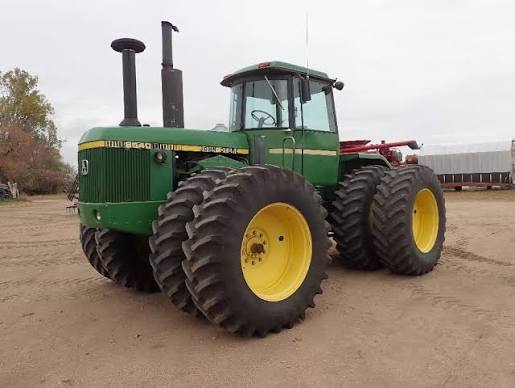

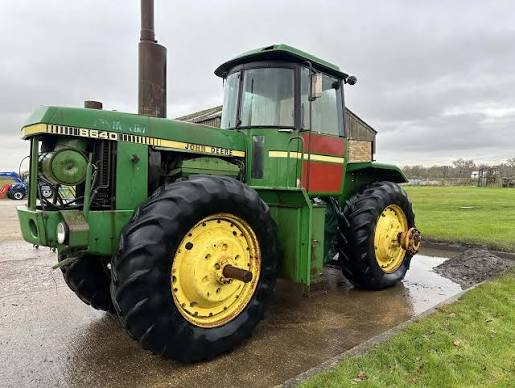

John Deere
8640
- Operating Weight
- 28,270 lb
- Displacement
- 616 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 275.0 hp
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 28,270 lb |
|---|---|
| Fuel Capacity | 214.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 8,545 lb |
| 3 Point Hitch Type | III/IIIN |
| Alternator Supplied Amperage | 90 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 12.0 gal |
| Hydraulic System Fluid Capacity | 41.0 gal |
| Engine Oil Capacity | 6.5 gal |
| Front Tire Size | 18.4-34 |
| Rear Tire Size | 18.4-34 |
Engine
| Displacement | 616 in³ |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 275.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | John Deere |
| PTO Power | 225.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 33.0 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Hydraulic System Type | Closed center |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 127 in |
| Wheelbase | 125 in |
| Overall Length | 224 in |
| Rear Tread Range | 130 in |
| Front Tread Range | 130 in |
| Front Axle Clearance | 96 in |
| Rear axle clearance | 97 in |
Transmission
| Max Speed - Reverse | 13.5 mph |
|---|---|
| Max Speed - Forward | 20.2 mph |
| Number of Forward Gears | 16 |
| Transmission Type | Partial power shift |
| Number of Reverse Gears | 6 |
