Massey Ferguson

MF 6499

Tractor

Operating Weight
17,196 lb
Displacement
452 in³
Power Measured @
2,200 rpm
All tractors

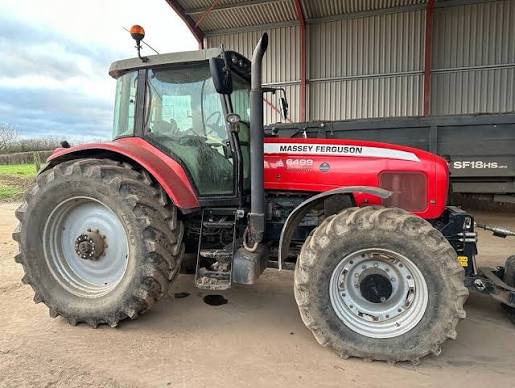

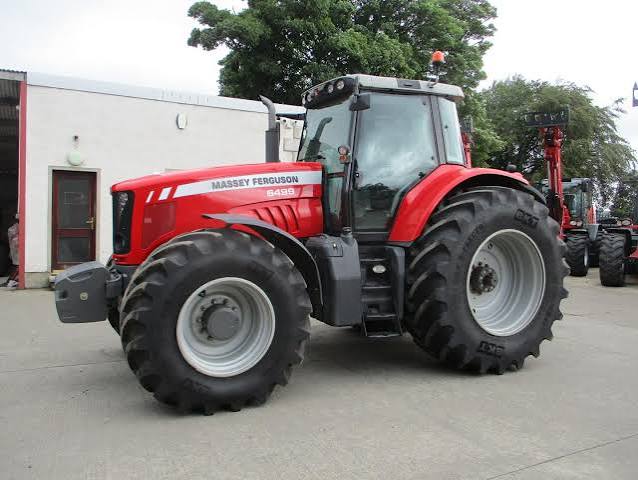

Massey Ferguson MF 6499 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,196 lb
Fuel Capacity93.8 gal
3 Point Hitch Lift Capacity @ 24 inches15,697 lb
3 Point Hitch TypeCat 3/3N
Turning Radius199 in
Alternator Supplied Amperage150 A

Engine

Engine specifications
Engine Model74 CTA
Displacement452 in³
Power Measured @2,200 rpm
Aspirationwastegate
PTO Power180.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Number of Remote Control Valves3
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Height - Top of Cab120 in
Wheelbase119 in
Overall Length18 in
Tire Sizefront 14.9R30 rear 18.4R42
Width Outside Frame98 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears24
Transmission TypeDyna-6
Number of Reverse Gears24

Axles

Axles specifications
Final Driveplanetary
