John Deere

JD570

Motor Grader

Max Operation Weight - Total
18,100 lb
Max Power
83.0 hp
Net Power Gears 7-8
83.0 hp
All motor graders

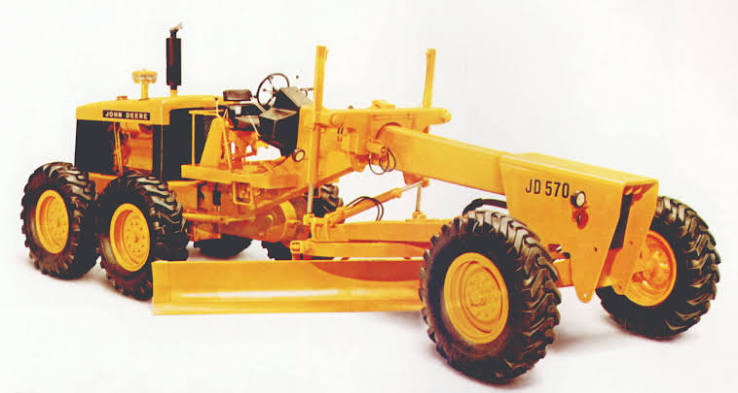

John Deere JD570 Motor Grader
1 / 5
Image 1 of 5
Image: blog.machinefinder.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total18,100 lb
Max Operation Weight - Front Axle5,800 lb
Max Operation Weight - Rear Axle13,600 lb
Std Operation Weight - Total20,278 lb
Tire Size13.00-24
Fuel Capacity50.0 gal
Std Operation Weight - Front Axle5,500 lb
Std Operation Weight - Rear Axle12,600 lb
Hydraulic System Fluid Capacity21.0 gal
Tandem Case Fluid Capacity (each)5.0 gal
Operating Voltage12 V
Cooling System Fluid Capacity5.5 gal
Circle Gearbox Fluid Capacity1.5 gal
Oil System Fluid Capacity2.5 gal

Engine

Engine specifications
Displacement304 in³
Power Measured @2,300 rpm
AspirationNatural
Torque Measured @1,300 rpm
Max Power83.0 hp
Net Power Gears 7-883.0 hp
Net Torque Gears 7-8212 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow26.9 gal/min
Pump TypePiston Pump
Relief Valve Pressure2,000 psi

Dimensions

Dimensions specifications
Wheelbase209 in
Overall Length293 in
Width Over Tires95 in
Height to Top of Isomount Cab126 in
Blade Base93 in
Tandem Axle Wheelbase57 in
Front Ground Clearance24 in

Transmission

Transmission specifications
Max Speed - Forward21.4 mph
Max Speed - Reverse6.8 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypePower shift

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width144 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right31 in

Circle

Circle specifications
Max Lift Above Ground12 in
Diameter54 in
Rotation360 °

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total30 °
Ground Clearance24 in

Steering System

Steering System specifications
Turning Radius216 in
Articulation Angle22 °
