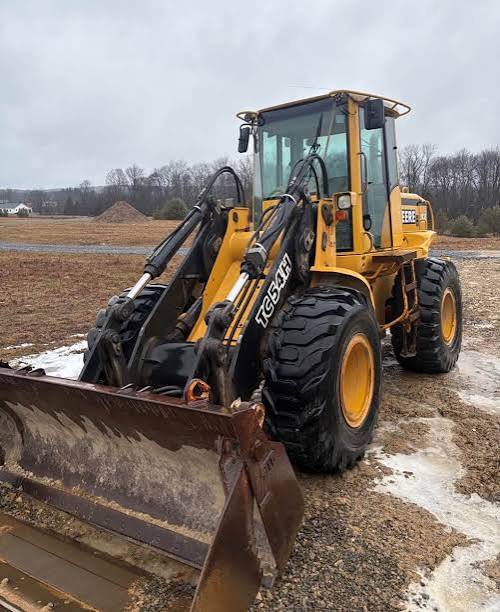

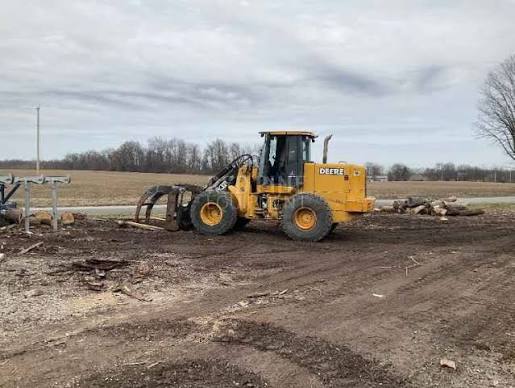

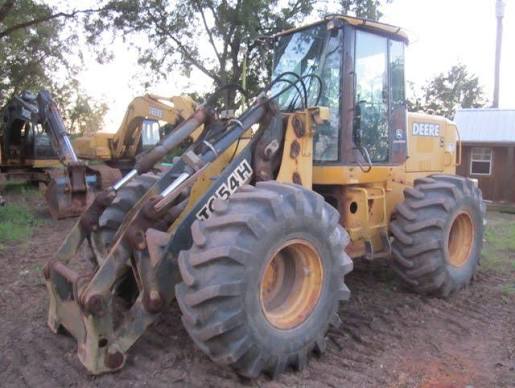

TC54H

Specifications

50 data points

Operating Specifications specifications
Operating Weight	26,552 lb
Fuel Capacity	65.0 gal
Tire Size	17.5-25
Hydraulic System Fluid Capacity	28.0 gal
Operating Voltage	24 V
Turning Radius	196 in
Rear Axle Oscillation	28 °
Alternator Supplied Amperage	55 A
Cooling System Fluid Capacity	6.1 gal
Transmission Fluid Capacity	5.3 gal
Engine Oil Capacity	4.8 gal
Static Tipping Load - Bucket	17,646 lb
Front Diff Fluid Capacity	5.1 gal
Rear Diff Fluid Capacity	5.1 gal
Static Tipping Load - Forks	13,404 lb
Static Tipping Load - Material Handler	8,920 lb

Dimensions specifications
Ground Clearance	20 in
Height - Top of Cab	127 in
Wheelbase	1,368 in
Width Over Tires	1,148 in
Length w/ Bucket on Ground	291 in
Reach at Max Height and Dump	52 in
Dump Clearance at Max Lift	137 in
Max Lift Height	148 in
Fork Tine Length	49 in
Length with out Forks on Ground	299 in
Height at Hook Max Reach	79 in
Hook Height at Max Lift - standard	223 in
