John Deere
TC62H
- Operating Weight
- 30,532 lb
- Bucket Capacity - heaped
- 3.51 yd³
- Gross Power
- 172.0 hp
- Net Power
- 160.0 hp
1 / 5

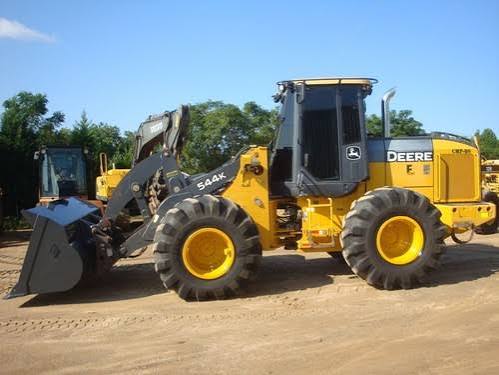

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 30,532 lb |
|---|---|
| Fuel Capacity | 70.0 gal |
| Tire Size | 20.5-25 |
| Hydraulic System Fluid Capacity | 31.0 gal |
| Operating Voltage | 24 V |
| Turning Radius | 205 in |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 55 A |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 7.2 gal |
| Engine Oil Capacity | 5.3 gal |
| Static Tipping Load - Bucket | 21,506 lb |
| Front Diff Fluid Capacity | 7.2 gal |
| Rear Diff Fluid Capacity | 5.6 gal |
| Static Tipping Load - Forks | 16,636 lb |
| Static Tipping Load - Material Handler | 11,036 lb |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 172.0 hp |
| Net Power | 160.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger with Aftercooler |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 578 lb-ft |
Hydraulic System
| Pump Flow Capacity | 55.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.0 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | Piston Pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 119 in |
| Width Over Tires | 103 in |
| Hinge Pin - Max Height | 158 in |
| Dump Clearance at Max Lift | 115 in |
| Reach at Max Height and Dump | 50 in |
| Length w/ Bucket on Ground | 302 in |
| Max Lift Height | 151 in |
| Fork Tine Length | 49 in |
| Length with out Forks on Ground | 311 in |
| Height at Hook Max Reach | 80 in |
| Hook Height at Max Lift - standard | 226 in |
| Hook Reach at Max Lift - extended | 145 in |
| Hook Max Reach - standard | 146 in |
Transmission
| Max Speed - Forward | 24.5 mph |
|---|---|
| Max Speed - Reverse | 14.9 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.51 yd³ |
|---|---|
| Bucket Capacity - struck | 3.00 yd³ |
| Breakout Force | 27,091 lb |
