Caterpillar
302.5C
Mini Excavator
89 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 9,943 lb |
|---|---|
| Fuel Capacity | 20.7 gal |
| Hydraulic Pump Flow Capacity | 31.8 gal/min |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Hydraulic System Relief Valve Pressure | 3,046 psi |
| Engine Oil Capacity | 1.9 gal |
| Cooling System Fluid Capacity | 0.8 gal |
Engine
| Engine Model | A2300 |
|---|---|
| Displacement | 142 in³ |
| Net Power | 41.4 hp |
| Max Torque | 112 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 103 in |
| Length of Track on Ground | 76 in |
| Width to Outside of Tracks | 74 in |
| Removal Counterweight Clearance | 28 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 61 in |
| Max Travel Speed | 2.4 mph |
| Shoe Size | 14 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 131 in |
|---|---|
| Max Reach Along Ground | 211 in |
| Max Vertical Wall Digging Depth | 96 in |
| Max Loading Height | 137 in |
| Shipping Length of Unit | 216 in |
| Max Cutting Height | 196 in |
| Shipping Height of Unit | 103 in |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|

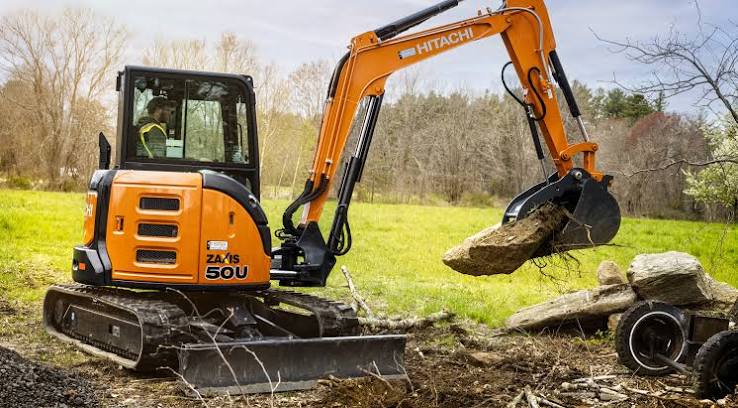

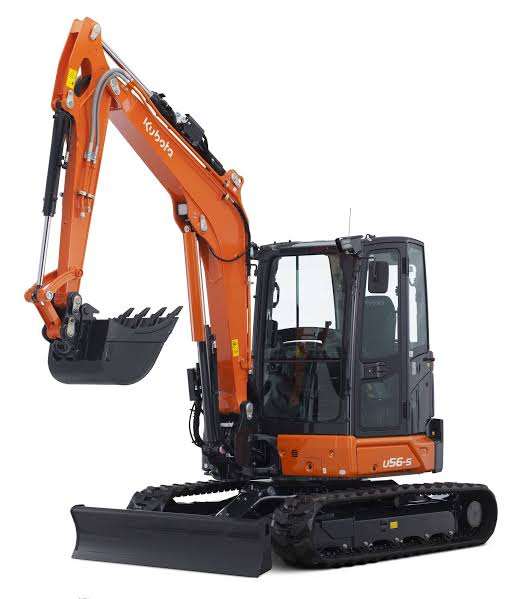

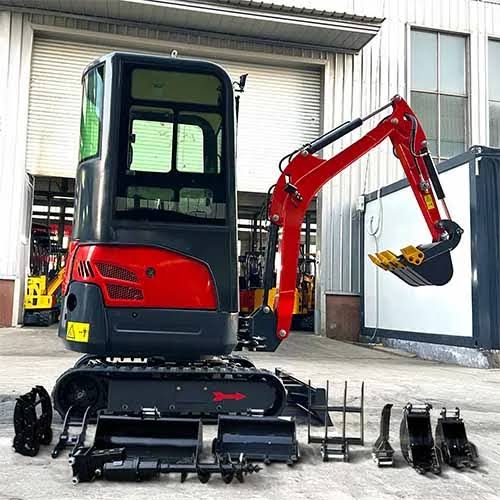

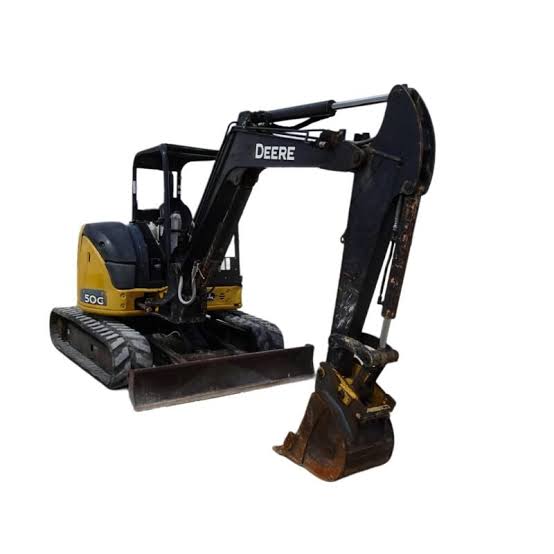

Comparable machines
