Kato
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

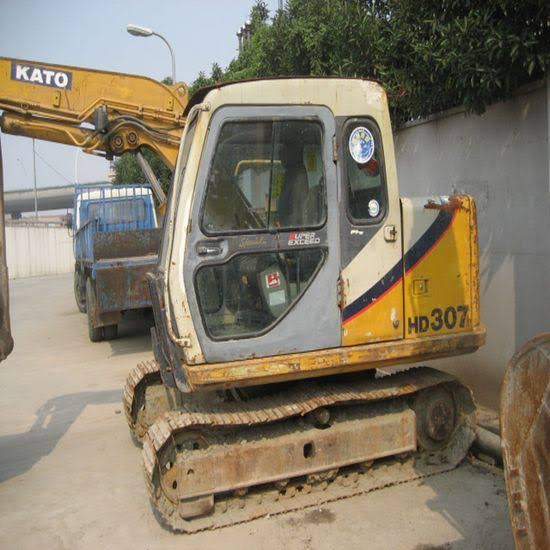

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 14,110 lb |
|---|---|
| Fuel Capacity | 37.0 gal |
| Hydraulic Pump Flow Capacity | 43.4 gal/min |
| Hydraulic System Fluid Capacity | 27.8 gal |
| Hydraulic System Relief Valve Pressure | 3,974 psi |
| Engine Oil Capacity | 2.2 gal |
| Cooling System Fluid Capacity | 2.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.4 gal |
| Alternator Supplied Amperage | 20 A |
Engine
| Engine Model | A-4JB1 |
|---|---|
| Displacement | 169 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 56.4 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 139 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 101 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 91 in |
| Removal Counterweight Clearance | 29 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 73 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 167 in |
|---|---|
| Max Reach Along Ground | 248 in |
| Max Loading Height | 209 in |
| Max Vertical Wall Digging Depth | 148 in |
| Max Cutting Height | 292 in |
| Shipping Length of Unit | 240 in |
| Shipping Height of Unit | 103 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 186 in |
|---|---|
| Max Vertical Wall Digging Depth | 167 in |
| Max Cutting Height | 306 in |
| Max Loading Height | 223 in |
| Max Reach Along Ground | 267 in |
