Kato
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

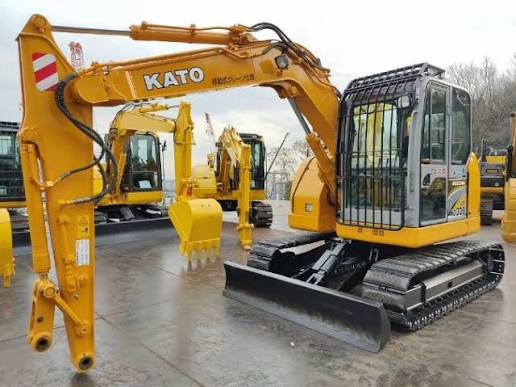

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 15,653 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Hydraulic Pump Flow Capacity | 40.8 gal/min |
| Hydraulic System Fluid Capacity | 25.1 gal |
| Hydraulic System Relief Valve Pressure | 4,554 psi |
| Engine Oil Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 3.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | CC-4JG1 |
|---|---|
| Displacement | 187 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 54.4 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 141 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 103 in |
| Tail Swing Radius | 48 in |
| Width to Outside of Tracks | 91 in |
| Removal Counterweight Clearance | 30 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 73 in |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 39 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 163 in |
|---|---|
| Max Loading Height | 210 in |
| Max Vertical Wall Digging Depth | 143 in |
| Max Cutting Height | 293 in |
| Shipping Length of Unit | 229 in |
| Shipping Height of Unit | 103 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 180 in |
|---|---|
| Max Vertical Wall Digging Depth | 163 in |
| Max Cutting Height | 307 in |
| Max Loading Height | 224 in |
| Shipping Length of Unit | 248 in |
| Shipping Height of Unit | 103 in |
