Kato
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

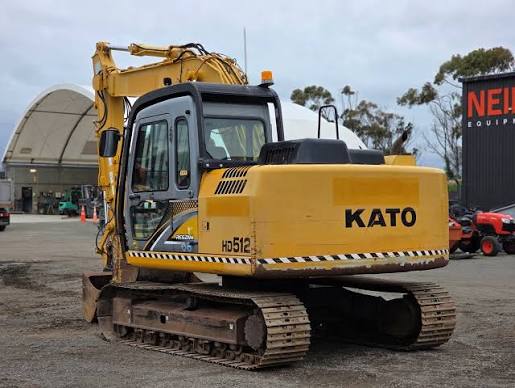

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 26,235 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 63.5 gal/min |
| Hydraulic System Fluid Capacity | 41.0 gal |
| Hydraulic System Relief Valve Pressure | 4,772 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 35 A |
Engine
| Engine Model | C 4D34-T |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 88.6 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 260 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 107 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 35 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 206 in |
|---|---|
| Max Loading Height | 238 in |
| Max Vertical Wall Digging Depth | 185 in |
| Max Cutting Height | 330 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 222 in |
|---|---|
| Max Vertical Wall Digging Depth | 200 in |
| Max Cutting Height | 340 in |
| Max Loading Height | 246 in |
| Shipping Length of Unit | 300 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 243 in |
|---|---|
| Max Cutting Height | 350 in |
| Max Loading Height | 257 in |
| Max Vertical Wall Digging Depth | 216 in |
