Kato

KR300

Rough Terrain Crane

Operating Weight
56,571 lb
Max Lift Capacity
66,139 lb
Max Speed - Forward
35.5 mph
Gross Power
221.3 hp
All rough terrain cranes

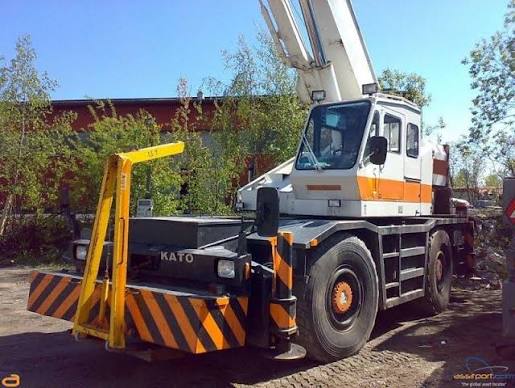

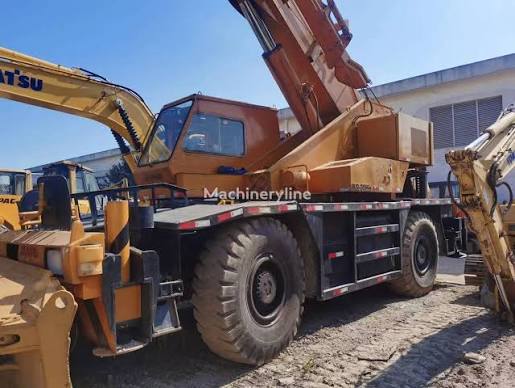

Kato KR300 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,571 lb
Fuel Capacity79.3 gal
Tire Size16.00-25-26PR
Hydraulic System Fluid Capacity118.9 gal

Engine

Engine specifications
Engine Model6D16T
Displacement461 in³
Power Measured @2,800 rpm
Gross Power221.3 hp
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque468 lb-ft

Dimensions

Dimensions specifications
Wheelbase11 in
Transport Width103 in
Transport Height139 in
Transport Length431 in
Width w/ Outriggers Extended245 in

Transmission

Transmission specifications
Max Speed - Forward35.5 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity66,139 lb
Max Height @ Max Raise Angle - no jib1,260 in
Min Height @ Max Raise Angle473 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed4 rpm
Min Operating Radius100 in
Max Operating Radius1,025 in
