Kawasaki
Caterpillar

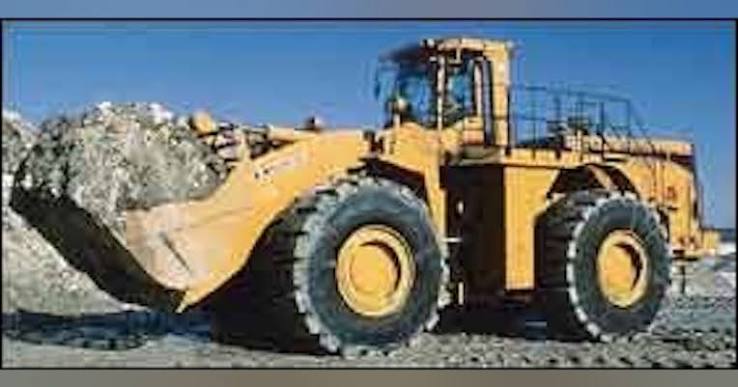

988K XE
Wheel Loader
57 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 174,276 lb |
|---|---|
| Fuel Capacity | 277.4 gal |
| Tire Size | 45/65-R39 (L-5) |
| Hydraulic System Fluid Capacity | 192.9 gal |
| Static Tipping Weight | 112,987 lb |
| Operating Voltage | 24 V |
| Turning Radius | 381 in |
| Engine Oil Fluid Capacity | 35.2 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 83.8 gal |
| Rear Axle/Diff Fluid Capacity | 83.8 gal |
| Cooling System Fluid Capacity | 55.5 gal |
| Transmission Fluid Capacity | 52.9 gal |
Engine
| Engine Model | QST30 |
|---|---|
| Displacement | 1,861 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 720.0 hp |
| Number of Cylinders | 12 |
| Aspiration | turbocharged & after cooled |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 86.1 gal/min |
|---|---|
| Raise Time | 9.8 s |
| Lower Time | 4.0 s |
| Dump Time | 1.6 s |
| Relief Valve Setting | 4,550 psi |
| Pump Type | piston type |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 196 in |
| Wheelbase | 190 in |
| Width Over Tires | 165 in |
| Reach at Max Lift and Dump | 73 in |
| Length with Bucket on Ground | 490 in |
| Hinge Pin - Max Height | 239 in |
Transmission
| Max Speed - Forward | 18.8 mph |
|---|---|
| Max Speed - Reverse | 17.0 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 13.50 yd³ |
|---|---|
| Bucket Capacity - struck | 11.60 yd³ |
| Dump Clearance at Max Raise | 175 in |
| Breakout Force | 156,526 lb |
| Bucket Width | 175 in |
