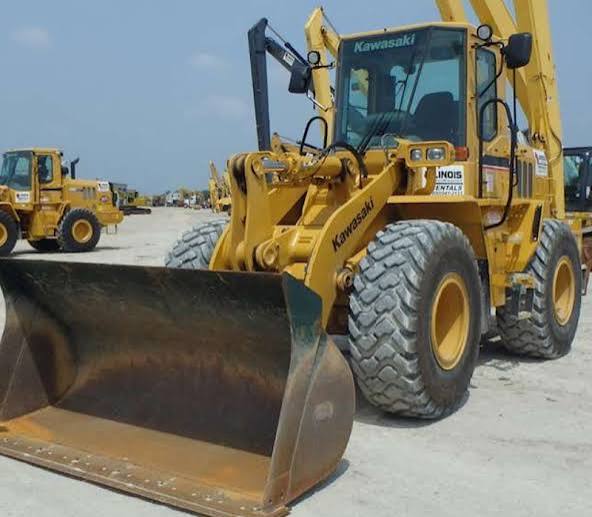

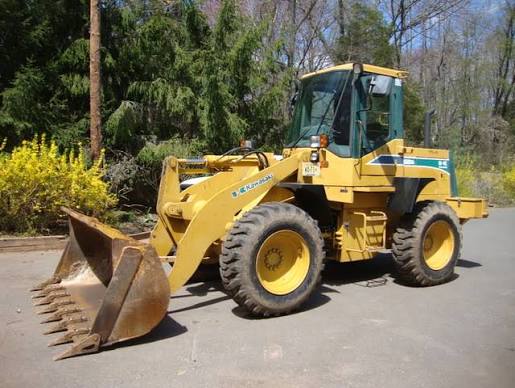

Kawasaki
New Holland
W110B
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 19,044 lb |
|---|---|
| Fuel Capacity | 46.3 gal |
| Tire Size | 15.5x25-12PR (L-2) |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Static Tipping Weight | 16,017 lb |
| Operating Voltage | 24 V |
| Turning Radius | 211 in |
| Engine Oil Fluid Capacity | 3.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 5.3 gal |
| Rear Axle/Diff Fluid Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 8.5 gal |
| Transmission Fluid Capacity | 5.3 gal |
Engine
| Engine Model | B5.9-C |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 109.0 hp |
| Number of Cylinders | 6 |
| Aspiration | natural |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 31.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 122 in |
| Wheelbase | 104 in |
| Width Over Tires | 90 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 258 in |
| Hinge Pin - Max Height | 137 in |
Transmission
| Max Speed - Forward | 20.1 mph |
|---|---|
| Max Speed - Reverse | 20.1 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.11 yd³ |
|---|---|
| Bucket Capacity - struck | 1.90 yd³ |
| Dump Clearance at Max Raise | 104 in |
| Breakout Force | 17,600 lb |
| Bucket Width | 97 in |
