Kawasaki
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

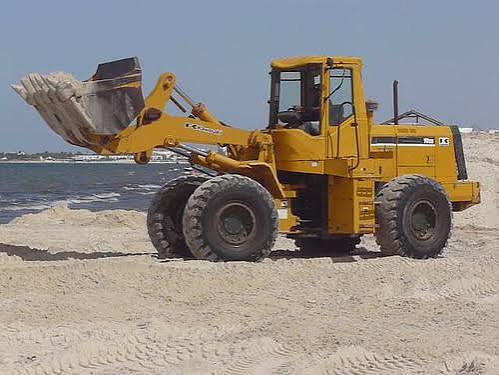

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 28,087 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Tire Size | 20.5-25-12PR (L-2) |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Static Tipping Weight | 22,035 lb |
| Operating Voltage | 24 V |
| Turning Radius | 239 in |
| Engine Oil Fluid Capacity | 3.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 12.7 gal |
| Rear Axle/Diff Fluid Capacity | 13.5 gal |
| Cooling System Fluid Capacity | 7.7 gal |
| Transmission Fluid Capacity | 8.0 gal |
Engine
| Engine Model | 6BTA 5.9-C |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 158.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged & after cooled |
Hydraulic System
| Pump Flow Capacity | 11.0 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.1 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 121 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 292 in |
| Hinge Pin - Max Height | 150 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 22.4 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Bucket Capacity - struck | 2.80 yd³ |
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 28,670 lb |
| Bucket Width | 106 in |
