Kawasaki
Tata Hitachi
TWL3036

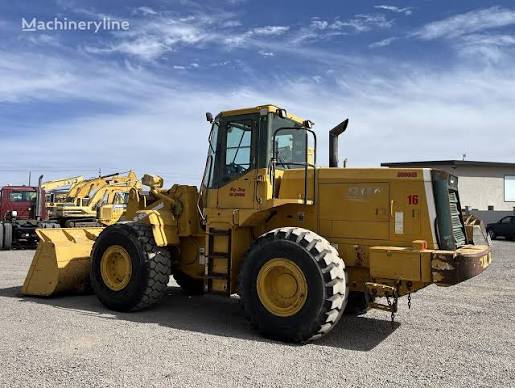

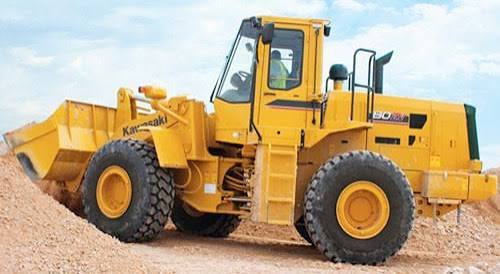

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 34,569 lb |
|---|---|
| Fuel Capacity | 63.5 gal |
| Tire Size | 23.5-25-16PR (L-3) |
| Hydraulic System Fluid Capacity | 38.4 gal |
| Static Tipping Weight | 26,389 lb |
| Operating Voltage | 24 V |
| Turning Radius | 250 in |
| Engine Oil Fluid Capacity | 6.1 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 14.6 gal |
| Rear Axle/Diff Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Transmission Fluid Capacity | 9.3 gal |
Engine
| Engine Model | 6CT-8.3-C |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 178.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 22.5 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.4 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 2,990 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 126 in |
| Width Over Tires | 107 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 301 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 22.7 mph |
|---|---|
| Max Speed - Reverse | 22.9 mph |
| Transmission Type | full power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 3.30 yd³ |
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 35,280 lb |
| Bucket Width | 110 in |
