Kobelco

135SR LC

Excavator

Operating Weight
30,870 lb
Max Digging Depth
238 in
Net Power
94.0 hp
All excavators

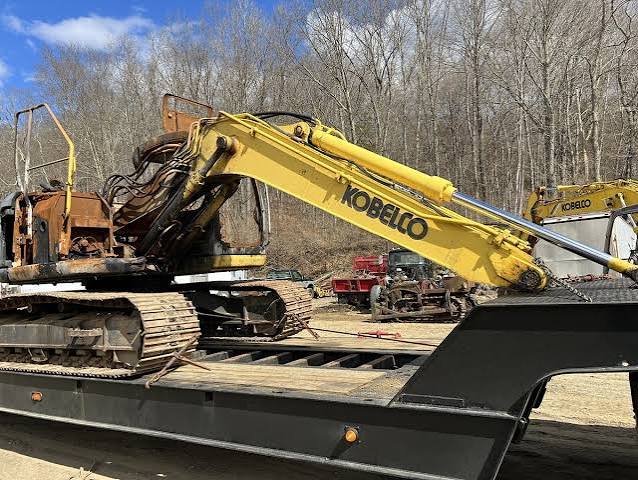

Kobelco 135SR LC Excavator
1 / 5
Image 1 of 5
Image: kobelco.com.au

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,870 lb
Fuel Capacity44.4 gal
Hydraulic Pump Flow Capacity67.9 gal/min
Hydraulic System Fluid Capacity37.0 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity3.4 gal
Cooling System Fluid Capacity4.8 gal

Engine

Engine specifications
Engine ModelA-4BG1T
Displacement264 in³
Power Measured @2,200 rpm
Net Power94.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab108 in
Length of Track on Ground120 in
Tail Swing Radius56 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Max Travel Speed3.7 mph
Shoe Size24 in
Drawbar Pull28,500 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth238 in
Max Reach Along Ground341 in
Max Loading Height254 in
Max Vertical Wall Digging Depth207 in
Max Cutting Height349 in
Shipping Length of Unit295 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³
Maximum Bucket Capacity0.90 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
