Kobelco

CK1100G

Crawler Crane

Max Lift Capacity
220,000 lb
Power Measured @
2,100 rpm
All crawler cranes

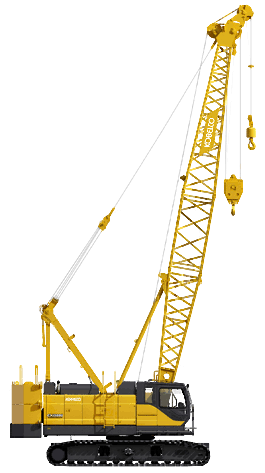

Kobelco CK1100G Crawler Crane
1 / 5
Image 1 of 5
Image: kcmu-cranes.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight198,500 lb
Fuel Capacity105.7 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity116.3 gal
Alternator Supplied Amperage136 A

Engine

Engine specifications
Engine ModelJ08E-UV
Power Measured @2,100 rpm
Gross Power285.0 hp
AspirationTurbo-charger
Torque Measured @1,600 rpm
Max Torque750 lb-ft
Engine MakeHINO

Dimensions

Dimensions specifications
Transport Width143 in
Transport Height131 in
Gradeability40.0 %

Transmission

Transmission specifications
Max Speed0.7 mph

Undercarriage

Undercarriage specifications
Width of Shoes48 in
Ground Pressure13 psi

Boom

Boom specifications
Max Lift Capacity220,000 lb
Swing Speed4 rpm
