Tadano

15010

Crawler Crane

Max Lift Capacity
154,000 lb
Power Measured @
2,200 rpm
All crawler cranes

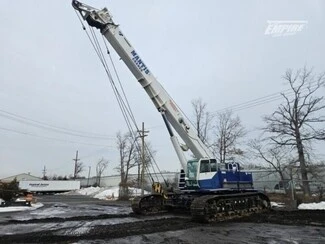

Tadano 15010 Crawler Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight137,218 lb
Fuel Capacity105.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity300.0 gal
Line pull - Main winches17,580 lb
Rope diameter- Main winches1 in
Alternator Supplied Amperage130 A

Engine

Engine specifications
Engine ModelQSB 6.7
Displacement409 in³
Power Measured @2,200 rpm
Gross Power260.0 hp
Number of Cylinders6
AspirationWater cooled
Torque Measured @1,500 rpm
Max Torque728 lb-ft
Engine MakeCummins
Bore4 in
Stroke5 in
Emissions levelEPA Tier 3

Dimensions

Dimensions specifications
Ground Clearance13 in
Tail Swing Radius114 in
Transport Width150 in
Transport Height127 in
Transport Length580 in
Operating Width224 in

Transmission

Transmission specifications
Max Speed1.8 mph

Undercarriage

Undercarriage specifications
Width of Shoes36 in
Number of Track Rollers per Side14

Boom

Boom specifications
Max Lift Capacity154,000 lb
Min Height @ Max Raise Angle450 in
Swing Speed2 rpm
Max Height @ Max Raise Angle - no jib1,339 in
Max Elevating Angle78 °
