Hitachi

KH150-3

Crawler Crane

Power Measured @
2,000 rpm
All crawler cranes

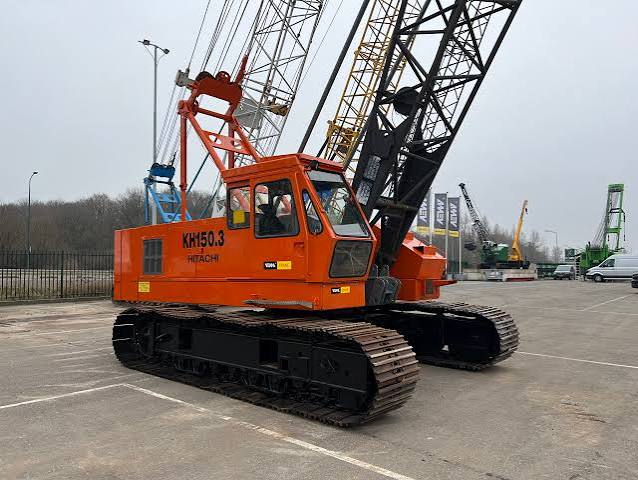

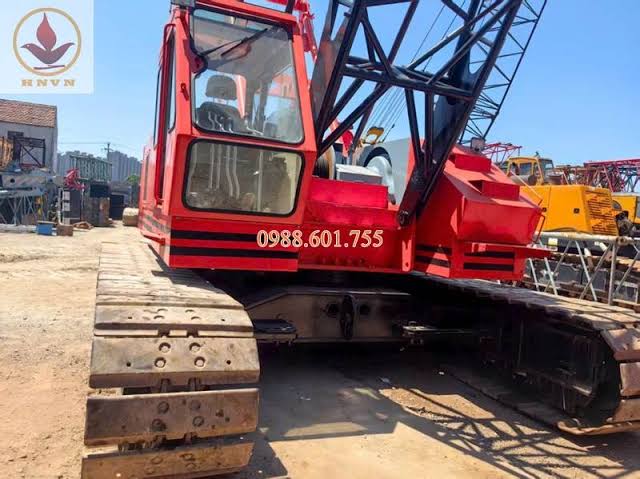

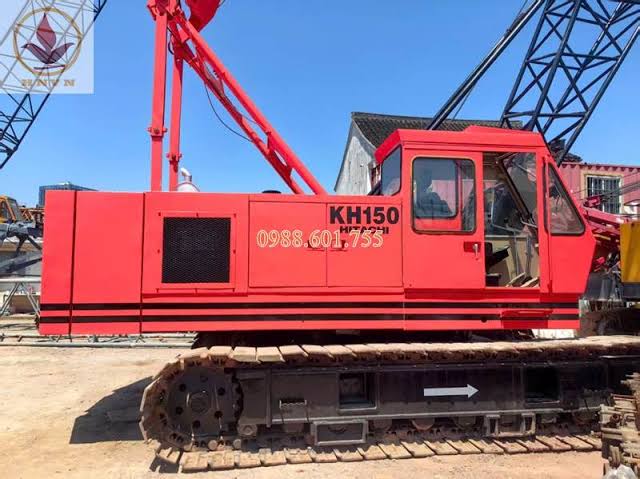

Hitachi KH150-3 Crawler Crane
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight90,390 lb
Fuel Capacity66.1 gal
Operating Voltage24 V
Hydraulic System Fluid Capacity75.3 gal
Cooling System Fluid Capacity9.3 gal
Engine Oil Capacity7.2 gal

Engine

Engine specifications
Engine ModelH06C-T
Power Measured @2,000 rpm
Gross Power147.6 hp
Number of Cylinders6
Torque Measured @1,800 rpm
Max Torque391 lb-ft
Engine MakeHino

Dimensions

Dimensions specifications
Ground Clearance17 in
Tail Swing Radius152 in
Transport Width131 in
Transport Height121 in

Transmission

Transmission specifications
Max Speed1.0 mph

Undercarriage

Undercarriage specifications
Width of Shoes30 in
Number of Shoes per Side53
Number of Track Rollers per Side12
Ground Pressure9 psi

Boom

Boom specifications
Min Height @ Max Raise Angle395 in
Swing Speed3 rpm
Max Height @ Max Raise Angle - no jib1,812 in
Max Elevating Angle80 °
