Link Belt

LS-98PL

Crawler Crane

Power Measured @
1,850 rpm
All crawler cranes

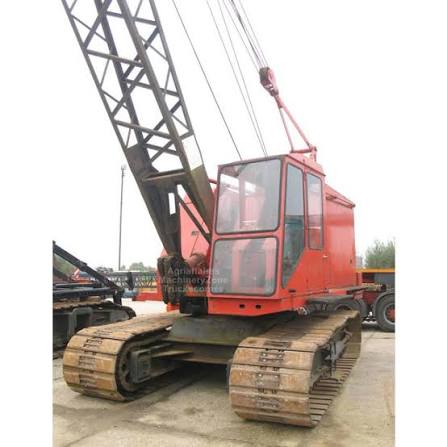

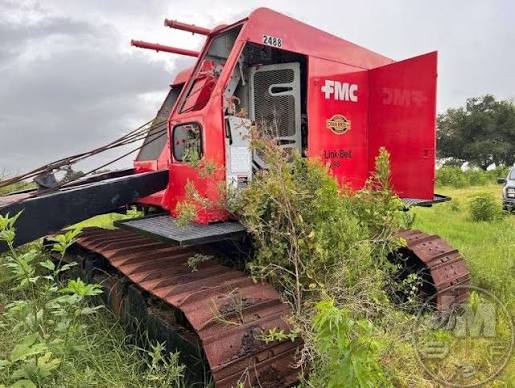

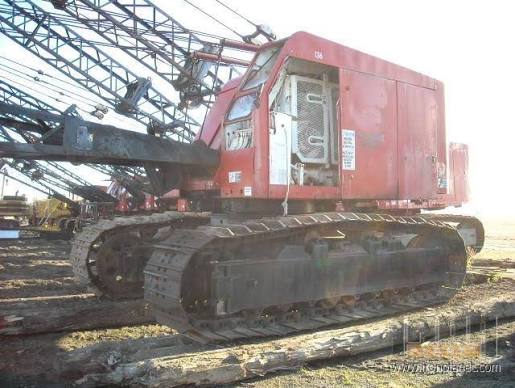

Link Belt LS-98PL Crawler Crane
1 / 5
Image 1 of 5
Image: ccmodels.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight73,542 lb
Fuel Capacity60.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM 4-71N
Displacement284 in³
Power Measured @1,850 rpm
Net Power112.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Max Torque351 lb-ft
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance26 in
Transport Width108 in
Transport Height145 in

Transmission

Transmission specifications
Max Speed2.0 mph

Boom

Boom specifications
Min Height @ Max Raise Angle480 in
Swing Speed4 rpm
Max Height @ Max Raise Angle - no jib1,626 in
