Grove
Link Belt

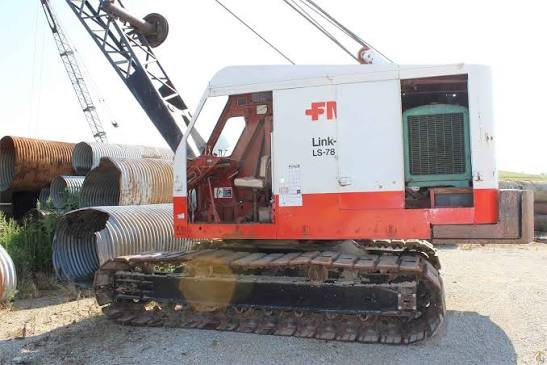

LS-78
Crawler Crane
21 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 55,131 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 77.5 gal |
Engine
| Engine Model | 6BTA |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 185.1 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 532 lb-ft |
| Engine Make | Cummins |
Dimensions
| Tail Swing Radius | 134 in |
|---|---|
| Transport Width | 95 in |
| Transport Height | 108 in |
| Transport Length | 428 in |
Transmission
| Max Speed | 5.0 mph |
|---|
Undercarriage
| Width of Shoes | 28 in |
|---|---|
| Number of Track Rollers per Side | 24 |
Boom
| Min Height @ Max Raise Angle | 359 in |
|---|---|
| Swing Speed | 2 rpm |
| Max Height @ Max Raise Angle - no jib | 937 in |
| Max Elevating Angle | 78 ° |
