Link Belt

LS-98

Crawler Crane

Power Measured @
1,850 rpm
All crawler cranes

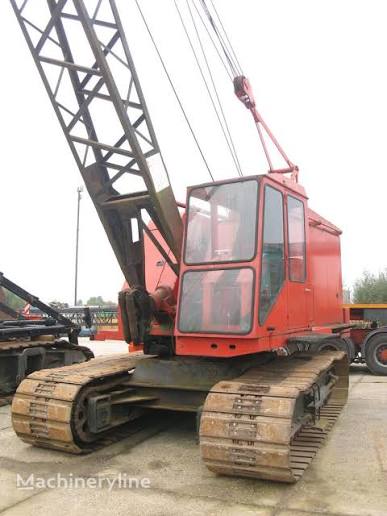

Link Belt LS-98 Crawler Crane
1 / 5
Image 1 of 5

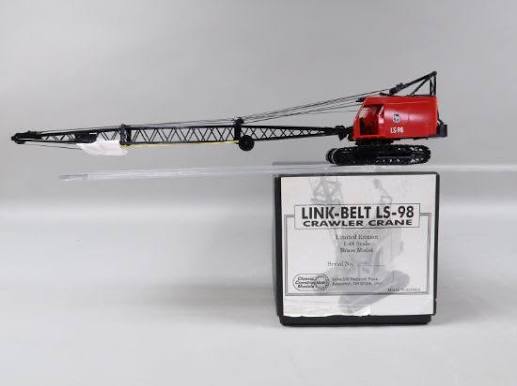

Image: ccmodels.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,426 lb
Fuel Capacity58.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM 4-71N
Displacement284 in³
Power Measured @1,850 rpm
Net Power110.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Max Torque351 lb-ft
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance13 in
Tail Swing Radius138 in
Transport Width101 in
Transport Height180 in
Counterweight Clearance46 in

Transmission

Transmission specifications
Max Speed1.8 mph

Undercarriage

Undercarriage specifications
Width of Shoes24 in
Number of Shoes per Side43
Number of Track Rollers per Side9
Ground Pressure8 psi

Boom

Boom specifications
Min Height @ Max Raise Angle480 in
Swing Speed4 rpm
