Link Belt
Grove
CM20
Crawler Crane
24 specifications
1 / 5

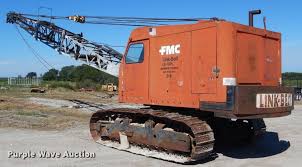

Image 1 of 5
Specifications
17 data points
Operating Specifications
| Operating Weight | 55,561 lb |
|---|---|
| Fuel Capacity | 43.0 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | GM 3-71N |
|---|---|
| Displacement | 213 in³ |
| Power Measured @ | 1,815 rpm |
| Net Power | 84.0 hp |
| Number of Cylinders | 3 |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 271 lb-ft |
| Bore | 4 in |
| Stroke | 5 in |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Transport Width | 95 in |
| Transport Height | 135 in |
Transmission
| Max Speed | 1.8 mph |
|---|
Boom
| Min Height @ Max Raise Angle | 360 in |
|---|
