Link Belt

LS-78

Crawler Crane

Power Measured @
1,815 rpm
All crawler cranes

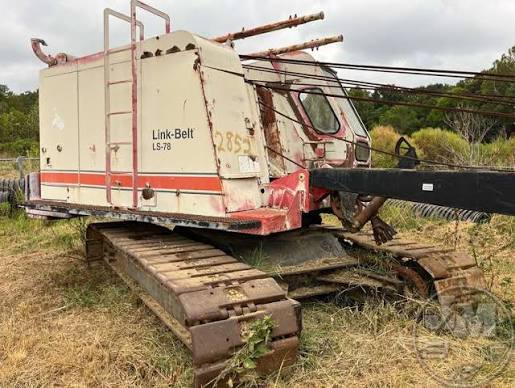

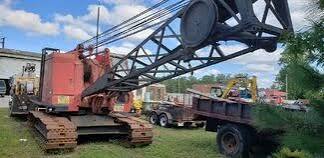

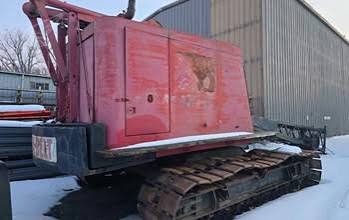

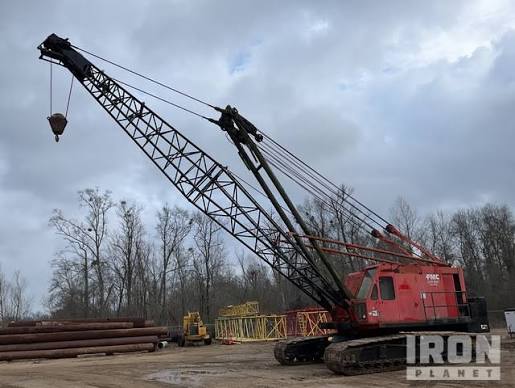

Link Belt LS-78 Crawler Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,561 lb
Fuel Capacity43.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM 3-71N
Displacement213 in³
Power Measured @1,815 rpm
Net Power84.0 hp
Number of Cylinders3
Torque Measured @1,200 rpm
Max Torque271 lb-ft
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance13 in
Tail Swing Radius121 in
Transport Width119 in
Transport Height169 in

Transmission

Transmission specifications
Max Speed1.2 mph

Undercarriage

Undercarriage specifications
Width of Shoes24 in
Number of Track Rollers per Side8

Boom

Boom specifications
Min Height @ Max Raise Angle360 in
Swing Speed4 rpm
