Kobelco

SK135SR-2

Excavator

Operating Weight
30,424 lb
Max Digging Depth
219 in
Net Power
92.8 hp
All excavators

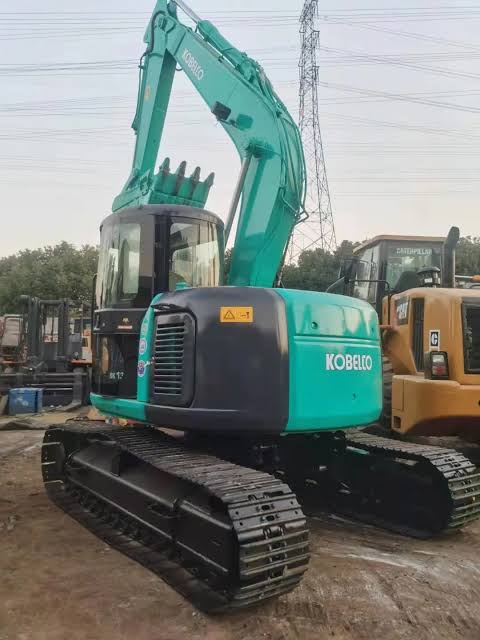

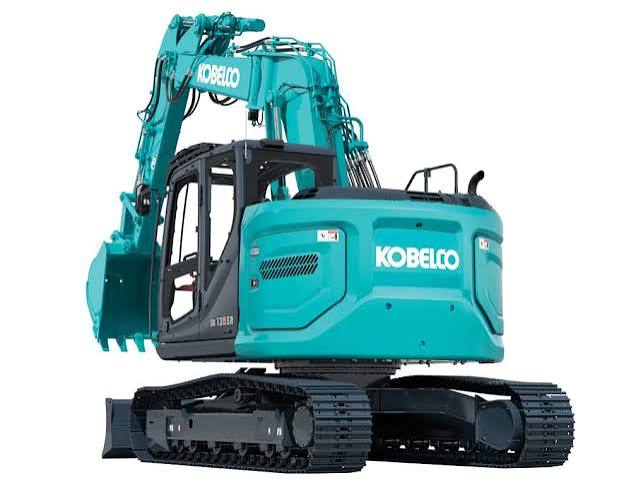

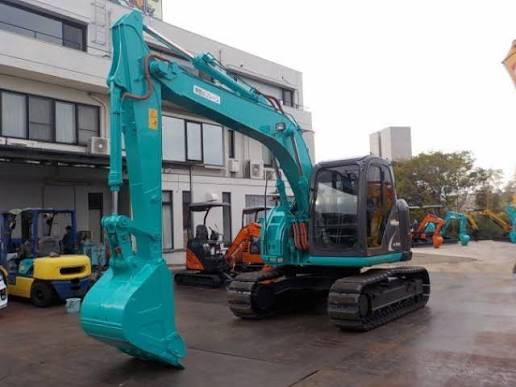

Kobelco SK135SR-2 Excavator
1 / 5
Image 1 of 5
Image: keepital.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,424 lb
Hydraulic Pump Flow Capacity68.7 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelD04FR
Displacement259 in³
Power Measured @2,000 rpm
Net Power92.8 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground114 in
Tail Swing Radius59 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground323 in
Max Loading Height267 in
Max Vertical Wall Digging Depth193 in
Shipping Length of Unit293 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
