Kobelco

SK135SRLC

Excavator

Operating Weight
29,983 lb
Max Digging Depth
219 in
Max Digging Depth
236 in
Net Power
92.8 hp
All excavators

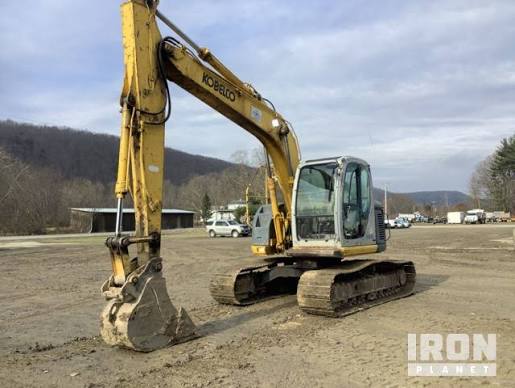

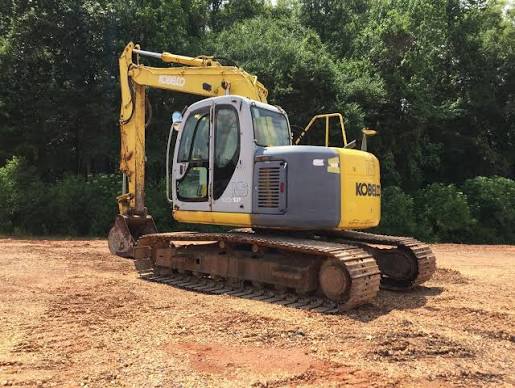

Kobelco SK135SRLC Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,983 lb
Fuel Capacity52.9 gal
Hydraulic Pump Flow Capacity68.7 gal/min
Hydraulic System Fluid Capacity33.5 gal
Engine Oil Capacity3.1 gal
Cooling System Fluid Capacity3.5 gal
Swing Drive Fluid Capacity0.5 gal

Engine

Engine specifications
Displacement203 in³
Power Measured @2,000 rpm
Gross Power99.3 hp
Net Power92.8 hp
AspirationTurbo-charger
Torque Measured @1,600 rpm
Max Torque277 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab113 in
Length of Track on Ground142 in
Tail Swing Radius59 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Ground Pressure1 psi
Max Travel Speed3.5 mph
Shoe Size0 in
Number of Shoes per Side46
Drawbar Pull31,024 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground323 in
Max Loading Height267 in
Max Vertical Wall Digging Depth193 in
Max Cutting Height362 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth236 in
Max Vertical Wall Digging Depth215 in
Max Cutting Height377 in
Max Loading Height281 in
Max Reach Along Ground341 in
