Kobelco

SK17SR-5E

Mini Excavator

Operating Weight
3,671 lb
Max Digging Depth
88 in
Net Power
14.5 hp
All mini excavators

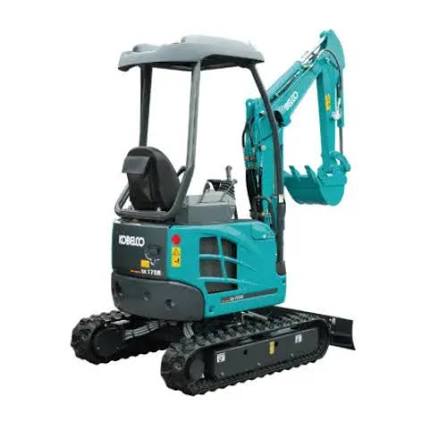

Kobelco SK17SR-5E Mini Excavator
1 / 5
Image 1 of 5
Image: farmersequip.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,671 lb
Fuel Capacity5.3 gal

Engine

Engine specifications
Engine ModelYANMAR 3TNV74F-SPBV
Displacement61 in³
Power Measured @2,500 rpm
Net Power14.5 hp
Number of Cylinders3
Torque Measured @1,800 rpm
Max Torque36 lb-ft
Engine TypeTier4 water-cooled 4-cycle 3-cylinder

Hydraulic System

Hydraulic System specifications
Pump TypeTwo variable displacement pumps + two gear pump

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab93 in
Length of Track on Ground137 in
Tail Swing Radius25 in
Width to Outside of Tracks37 in
Traction force4,114 lb

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side3
Max Travel Speed2.7 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth88 in
Max Reach Along Ground146 in
Max Vertical Wall Digging Depth73 in
Max Loading Height106 in
Shipping Length of Unit137 in
Max Cutting Height145 in
Shipping Height of Unit93 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
