302.5C
Mini Excavator
89 specifications
1 / 5

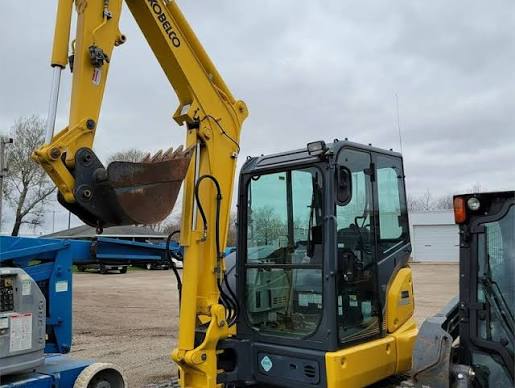

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 10,300 lb |
|---|---|
| Fuel Capacity | 19.9 gal |
Engine
| Engine Model | YANMAR 4TNV88C-PYB |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 37.4 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,560 rpm |
| Max Torque | 97 lb-ft |
| Engine Type | Water cooled 4-cycle 4-cylinder direct injection diesel engine |
Hydraulic System
| Pump Type | Two variable displacement pumps+ two gear pumps |
|---|
Dimensions
| Height - Top of Cab | 101 in |
|---|---|
| Length of Track on Ground | 209 in |
| Tail Swing Radius | 37 in |
| Width to Outside of Tracks | 78 in |
| Traction force | 12,390 lb |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 2.5 mph |
| Shoe Size | 16 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 135 in |
|---|---|
| Max Reach Along Ground | 226 in |
| Max Vertical Wall Digging Depth | 111 in |
| Max Loading Height | 162 in |
| Shipping Length of Unit | 209 in |
| Max Cutting Height | 224 in |
| Shipping Height of Unit | 101 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
