Komatsu

830E-AC

Off-Highway Truck

Operating Weight
850,650 lb
Max Speed
40.0 mph
Gross Power
2,360.0 hp
All off-highway trucks

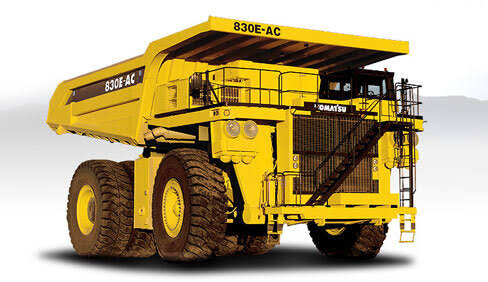

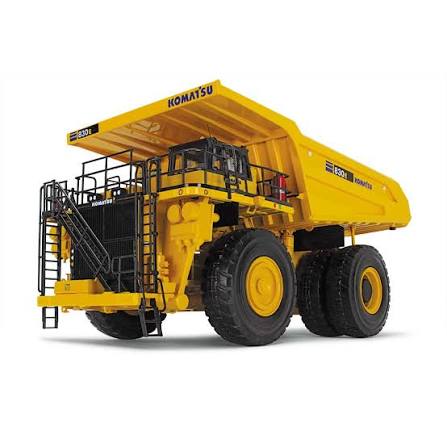

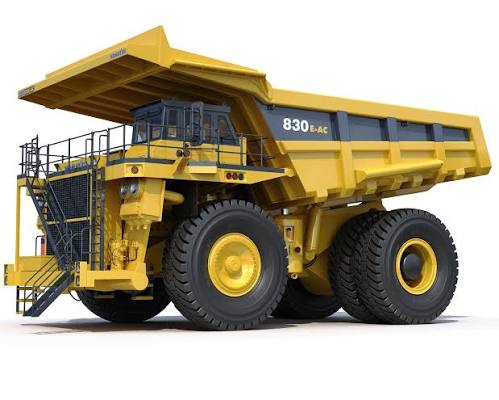

Komatsu 830E-AC Off-Highway Truck
1 / 5
Image 1 of 5
Image: products.unitedtractors.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity1,199.9 gal
Cooling System Fluid Capacity150.0 gal
Hydraulic System Fluid Capacity250.0 gal
Alternator Supplied Amperage260 A
Steering System Fluid Capacity238.0 gal

Engine

Engine specifications
Engine ModelSDA16V160
Gross Power2,360.0 hp
Number of Cylinders16
Aspiration260 amps
MakeKomatsu
Rated Engine Speed250 rpm

Weights

Weights specifications
Operating Weight850,650 lb
Empty Weight362,000 lb
Loaded Weight850,650 lb
Weight Distribution Front - loaded33.0 %
Weight Distribution Rear - loaded67.0 %
Weight Distribution Front - empty50.0 %
Weight Distribution Rear - empty50.0 %

Dimensions

Dimensions specifications
Ground Clearance50 in
Wheelbase251 in
Overall Length558 in
Overall Width289 in
Overall Height271 in
Dump Height528 in
Dump Ground Clearance72 in

Transmission

Transmission specifications
Max Speed40.0 mph

Drive System

Drive System specifications
Drive Configrwd

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank487,946.8 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Rated Payload488,000 lb
Raise Time25.0 s
Lower Time27.0 s
Load Capacity - heaped192.99 yd³
Load Capacity - Struck152.99 yd³
