Komatsu

CK30-1

Compact Track Loader

Operating Weight
9,546 lb
Max Speed - high range
7.5 mph
Displacement
208 in³
All compact track loaders

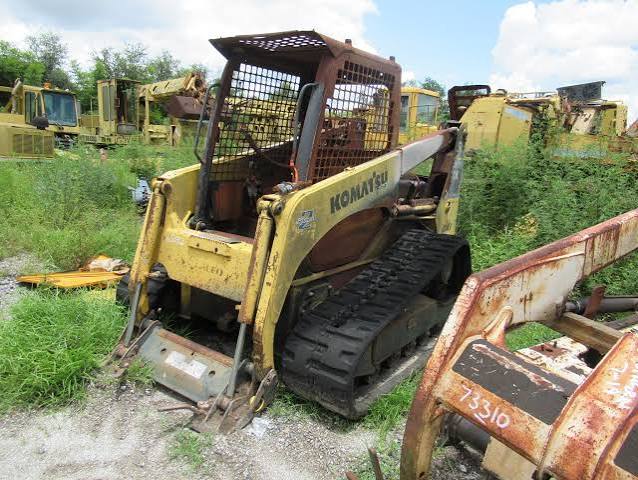

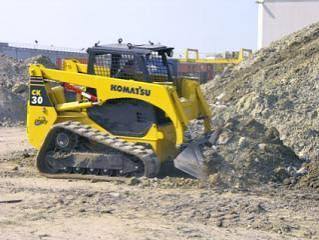

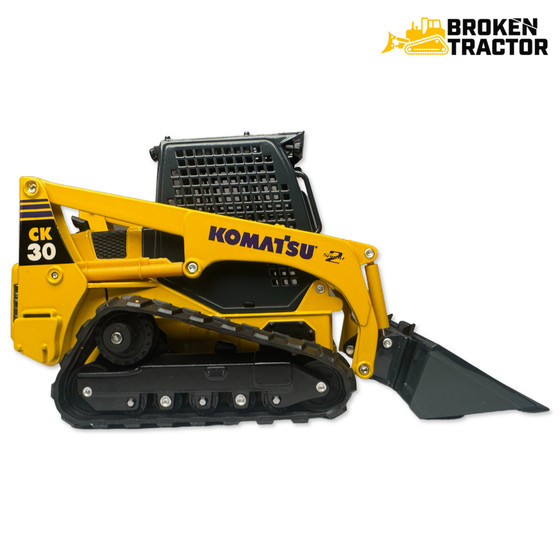

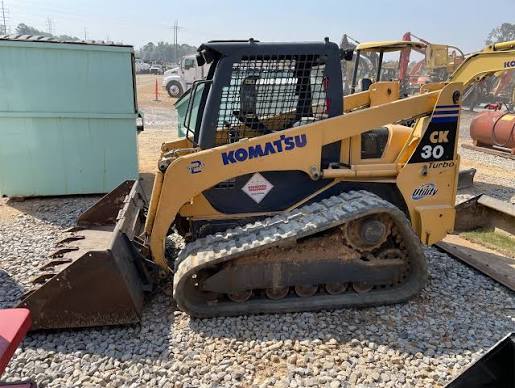

Komatsu CK30-1 Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,546 lb
Max Speed - high range7.5 mph
Max Speed - low range4.7 mph
Fuel Capacity19.3 gal
Hydraulic System Fluid Capacity10.1 gal
Cooling System Fluid Capacity2.2 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity3.4 gal

Engine

Engine specifications
Engine ModelS4D98E-2NFE
Displacement208 in³
Power Measured @2,500 rpm
Net Power84.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,600 rpm
Peak Torque211 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow21.2 gal/min
Relief Valve Pressure3,045 psi
Pump Typekomatsu closed load sensing system

Dimensions

Dimensions specifications
Height - Top of Cab84 in
Reach at Max Lift and Dump25 in
Width Over Tracks80 in
Length with Bucket141 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket89 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Tipping Angle7,099 °
Operating Load3,550 lb
Breakout Force—
