Komatsu

D41A-5

Crawler Dozer

Operating Weight
23,369 lb
Gross Power
95.0 hp
All crawler dozers

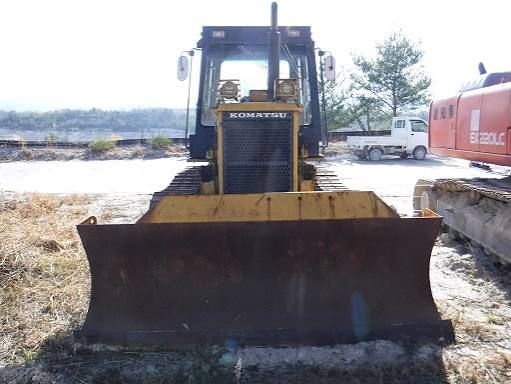

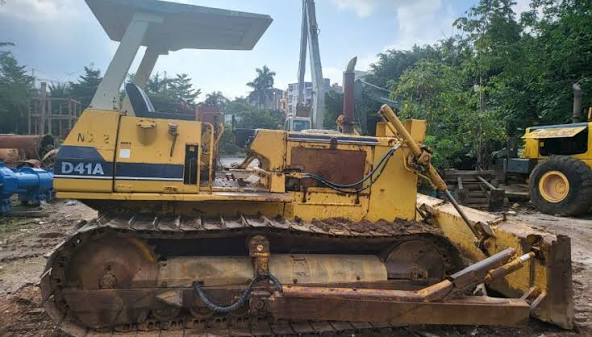

Komatsu D41A-5 Crawler Dozer
1 / 5
Image 1 of 5
Image: jikotrading.jp

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,369 lb

Engine

Engine specifications
Engine Model6D105-1
Displacement397 in³
Power Measured @2,350 rpm
Gross Power95.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab110 in
Length of Track on Ground89 in
Width Over Tracks85 in
Length w/ Blade176 in
Length w/o Blade134 in

Transmission

Transmission specifications
Transmission TypeHS
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge70 in
Number of Track Rollers per Side6
Number of Shoes per Side39
Number of Carrier Rollers per Side1
Standard Shoe Size16 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width108 in
Height36 in
