Komatsu

D475A-1

Crawler Dozer

Operating Weight
201,877 lb
Gross Power
2,682.1 hp
All crawler dozers

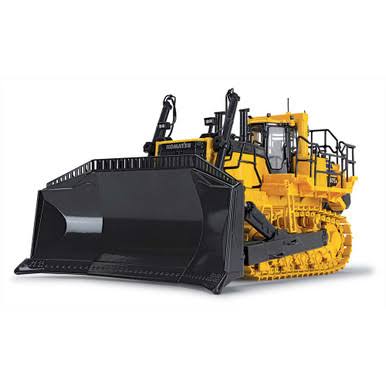

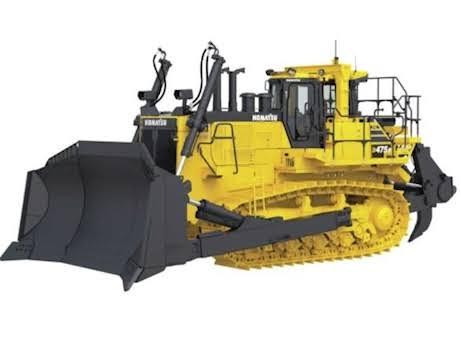

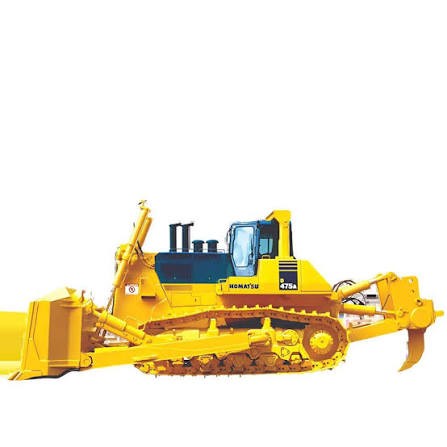

Komatsu D475A-1 Crawler Dozer
1 / 5
Image 1 of 5
Image: berrytractor.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight201,877 lb

Engine

Engine specifications
Engine ModelSA8V170
Displacement1,884 in³
Power Measured @2,000 rpm
Gross Power2,682.1 hp

Dimensions

Dimensions specifications
Ground Clearance28 in
Height - Top of Cab180 in
Length of Track on Ground166 in
Width Over Tracks146 in
Length w/ Blade455 in
Length w/o Blade253 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge109 in
Number of Track Rollers per Side8
Number of Shoes per Side39
Number of Carrier Rollers per Side2
Standard Shoe Size28 in
Track Pitch13 in

Standard Blade

Standard Blade specifications
Width207 in
Height93 in
