Komatsu

D475A-2

Crawler Dozer

Operating Weight
188,495 lb
Gross Power
781.0 hp
All crawler dozers

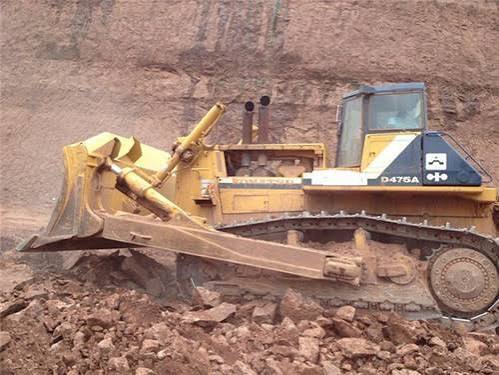

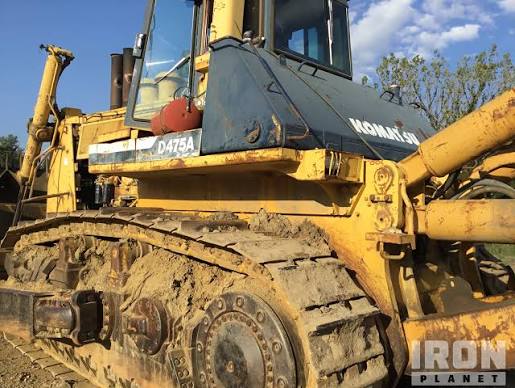

Komatsu D475A-2 Crawler Dozer
1 / 5
Image 1 of 5
Image: machanx.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight188,495 lb

Engine

Engine specifications
Engine ModelSA12V140
Displacement1,860 in³
Power Measured @2,200 rpm
Gross Power781.0 hp
Number of Cylinders12

Dimensions

Dimensions specifications
Ground Clearance26 in
Height - Top of Cab180 in
Length of Track on Ground166 in
Width Over Tracks144 in
Length w/ Blade455 in
Length w/o Blade253 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge109 in
Number of Track Rollers per Side8
Number of Shoes per Side39
Number of Carrier Rollers per Side2
Standard Shoe Size28 in
Track Pitch13 in

Standard Blade

Standard Blade specifications
Width207 in
Height103 in
